Cleveland PRO C41636

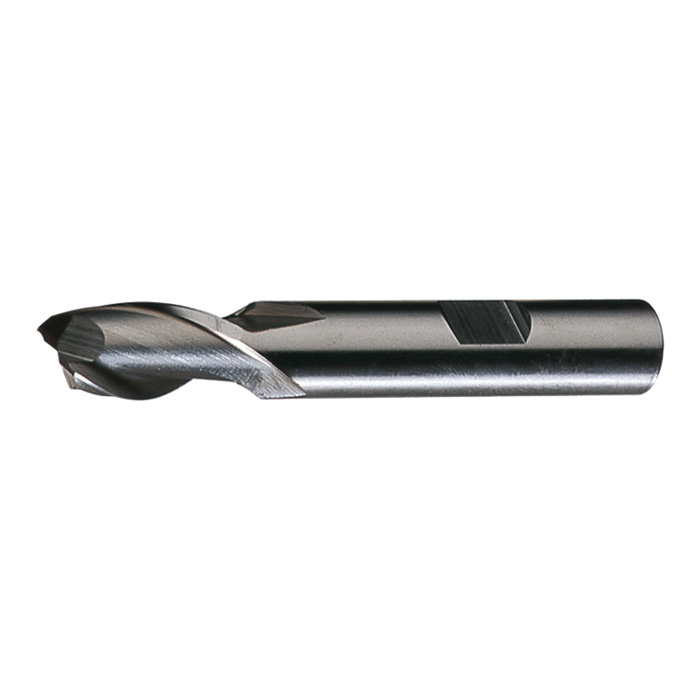

Cleveland C41636 HG-2 Center Cutting General Purpose Single End Square End End Mill, 7/8 in Dia Cutter, 1-1/2 in Length of Cut, 2 Flutes, 3/4 in Dia Shank, 4-1/8 in OAL, Bright
In stock
(1)
Cleveland End Mill, Center Cutting General Purpose Single End Square End, Series: HG-2, 7/8 in Diameter Cutter, 4-1/8 in Overall Length, 1-1/2 in Length of Cut, 2 Flutes, Spiral Flute, 3/4 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Straight/Weldon Flat Shank, HSS, Bright
Features
- 2-Flute end mills have greater chip ejection capacity and are ideal for slotting
- Coatings reduce heat and abrasion to increase tool life
- The increased lubricity of the coating surface reduces material adhesion and built-up edge, enabling even higher feed rates
- Coatings reduce the amount of torque required for machining to allow more efficient use of equipment
- Applicable on alloy steel, tool steel, carbon steel and cast iron
Specifications
ApplicationGeneral Finishing Applications
Cutter Diameter7/8 in
Cutting DirectionRight Hand
FinishBright
Flute TypeSpiral
Helix Angle30 deg
Length of Cut1-1/2 in
MaterialHSS
Number of Flutes2
Overall Length4-1/8 in
SeriesHG-2
Shank Diameter3/4 in
Shank TypeStraight/Weldon Flat
TypeCenter Cutting General Purpose Single End Square End
