Cleveland PRO C41404

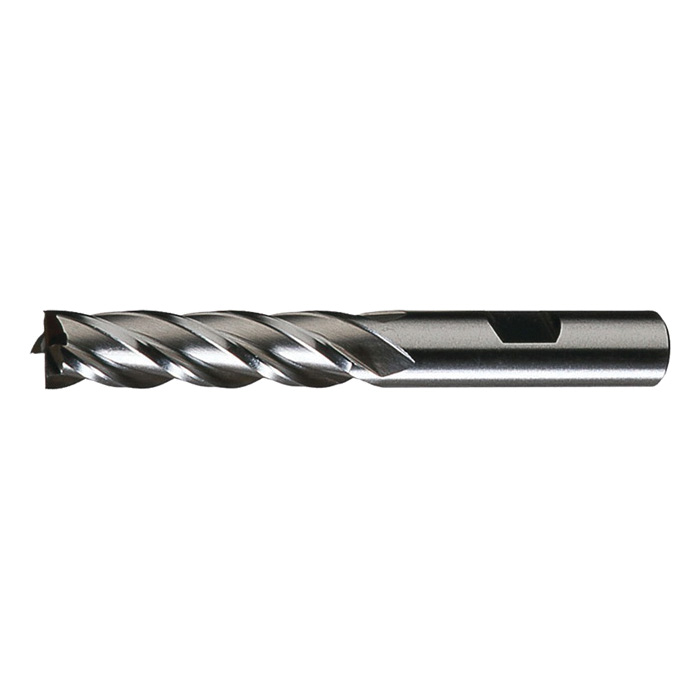

Cleveland C41404 HG-4C Center Cutting General Purpose Single End Square End End Mill, 1 in Dia Cutter, 6 in Length of Cut, 4 Flutes, 1 in Dia Shank, 8-1/2 in OAL, Bright
Invoice description:
1" #691 4fl Hss Cc End M Ill, C41404
In stock
(3)
Cleveland End Mill, Center Cutting General Purpose Single End Square End, Series: HG-4C, 1 in Diameter Cutter, 8-1/2 in Overall Length, 6 in Length of Cut, 4 Flutes, Spiral Flute, 1 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Straight/Weldon Flat Shank, HSS, Bright
Features
- Multi-flute end mills deliver a smoother finish and are better for peripheral cuts
- Multi-flute end mills have a heavy duty cross section for better rigidity
- Increased number of flutes mean more cutting edges, providing more cutting action
- Coatings reduce heat and abrasion to increase tool life
- The increased lubricity of the coating surface reduces material adhesion and built-up edge, enabling even higher feed rates
- Coatings reduce the amount of torque required for machining to allow more efficient use of equipment
- Applicable on alloy steel, tool steel, cast iron and copper alloys
Specifications
ApplicationGeneral Finishing Applications
Cutter Diameter1 in
Cutting DirectionRight Hand
FinishBright
Flute TypeSpiral
Helix Angle30 deg
Length of Cut6 in
MaterialHSS
Number of Flutes4
Overall Length8-1/2 in
SeriesHG-4C
Shank Diameter1 in
Shank TypeStraight/Weldon Flat
TypeCenter Cutting General Purpose Single End Square End
Additional Information
Standards/ApprovalANSI Specified
