Cleveland PRO C41209

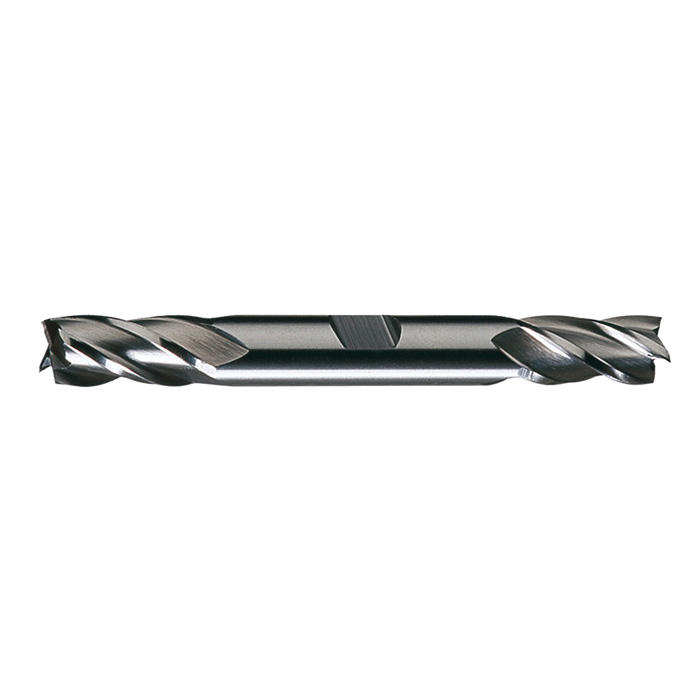

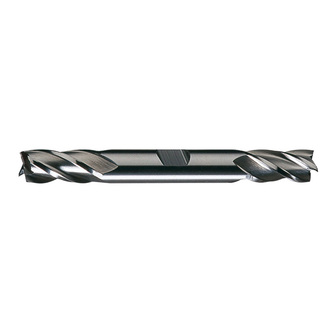

Cleveland C41209 HD-4C Center Cutting Double End General Purpose Square End End Mill, 5/16 in Dia Cutter, 3/4 in Length of Cut, 4 Flutes, 3/8 in Dia Shank, 3-1/2 in OAL, Bright
Invoice description:
5/16 #582 4fl De Cc End Mill, Edp C41209
In stock
(4)
Cleveland End Mill, Center Cutting Double End General Purpose Square End, Series: HD-4C, 5/16 in Diameter Cutter, 3-1/2 in Overall Length, 3/4 in Length of Cut, 4 Flutes, Spiral Flute, 3/8 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Straight/Weldon Flat Shank, HSS, Bright
Features
- Multi-flute end mills deliver a smoother finish and are better for peripheral cuts
- Multi-flute end mills have a heavy duty cross section for better rigidity
- Increased number of flutes mean more cutting edges, providing more cutting action
- Coatings reduce heat and abrasion to increase tool life
- The increased lubricity of the coating surface reduces material adhesion and built-up edge, enabling even higher feed rates
- Coatings reduce the amount of torque required for machining to allow more efficient use of equipment
- Applicable on alloy steel, copper alloys, cast iron and magnesium

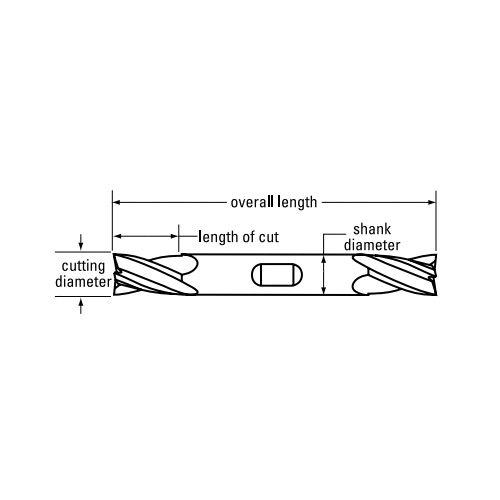

Specifications
ApplicationGeneral Finishing Applications
Cutter Diameter5/16 in
Cutting DirectionRight Hand
FinishBright
Flute TypeSpiral
Helix Angle30 deg
Length of Cut3/4 in
MaterialHSS
Number of Flutes4
Overall Length3-1/2 in
SeriesHD-4C
Shank Diameter3/8 in
Shank TypeStraight/Weldon Flat
TypeCenter Cutting Double End General Purpose Square End
Additional Information
Standards/ApprovalANSI Specified
