Chicago-Latrobe PRO 52437

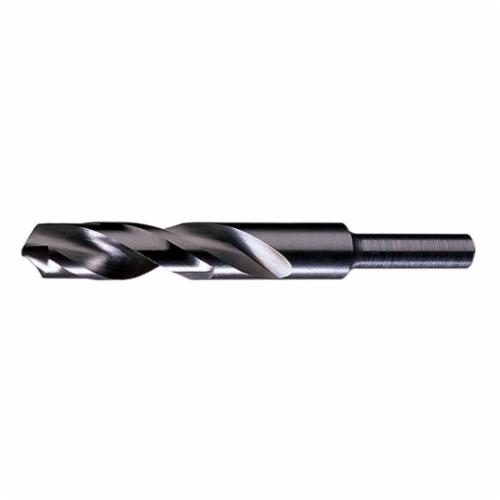

Chicago-Latrobe 52437 190F General Purpose Silver & Deming Drill, 37/64 in Drill - Fraction, 0.5781 in Drill - Decimal Inch, 1/2 in Shank, HSS
Invoice description:
37/64 #190f Hss Drill W/ 1/2" Shank, Edp 5243
UPC: 662355524374
UNSPSC:
23241636
Manufacturer PN: 52437
$30.28 EA
Factory OrderEstimated to ship in 7 days
Chicago-Latrobe Silver & Deming Drill, General Purpose, Series: 190F, 37/64 in Drill - Fraction, 0.5781 in Drill - Decimal Inch, 6 in Overall Length, 3-1/8 in Cutting Depth, Spiral Flute, 3-1/8 in Flute Length, 1/2 in Shank, Flat/Reduced Shank, 118 deg Point, Split Point, Right Hand Cutting Direction, HSS Cutting Edge, HSS, Black Oxide, Applicable Materials: Carbon Steel, Cast Iron, Alloy Steel and Wood
Features
- Larger size general purpose drills with 1/2 in reduced shank
- Round shank or shank with three flats for a more positive grip in the drill chuck, flats reduce drill slippage under high load
- Standard overall length and flute length for increased rigidity, less deflection and better hole accuracy
- Standardized lengths result in minimal adjustment during tool changes in screw machines and machining centers
- Black oxide surface finish increases wear resistance and adds lubricity, improving chip flow
- For portable drilling due to increased rigidity
Specifications
ApplicationFor portable drilling due to increased rigidity
Applicable MaterialsCarbon Steel, Cast Iron, Alloy Steel and Wood
Cutting Depth3-1/8 in
Cutting DirectionRight Hand
Cutting Edge MaterialHSS
Drill Size - Decimal Inch0.5781 in
Drill Size - Fraction37/64 in
FinishBlack Oxide
Flute Length3-1/8 in
Flute TypeSpiral
MaterialHSS
Overall Length6 in
Point Angle118 deg
Point TypeSplit
Series190F
Shank Size1/2 in
Shank TypeFlat/Reduced
TypeGeneral Purpose
Additional Information
Country of OriginUS
