Chicago-Latrobe PRO 47233

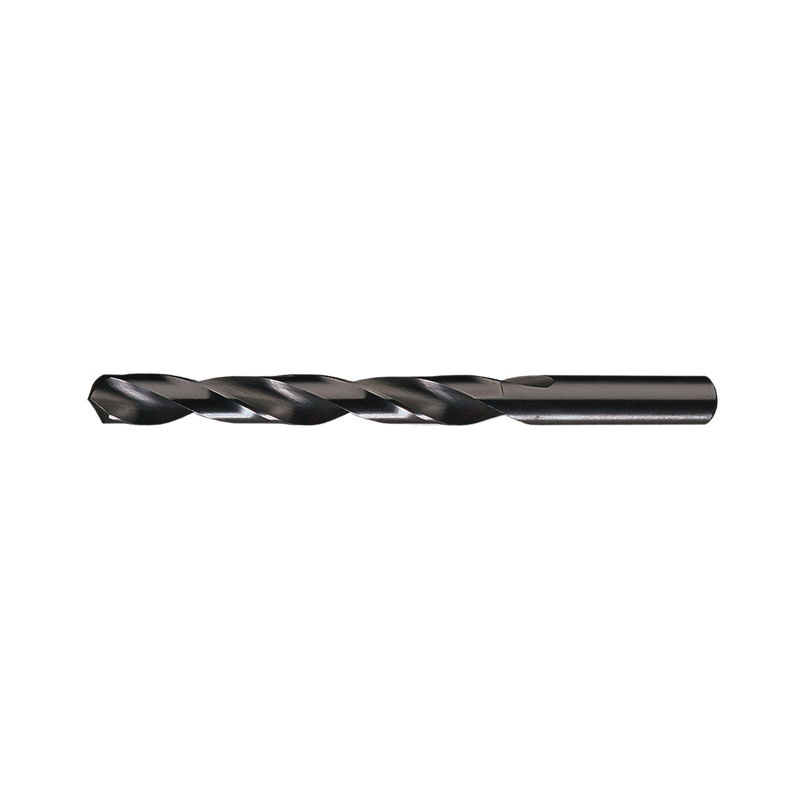

Chicago-Latrobe 47233 150 General Purpose Jobber Length Drill Bit, 1.5 mm Drill - Metric, 0.0591 in Drill - Decimal Inch, 118 deg Point, HSS, Black Oxide
Invoice description:
1.50mm #150 Hss Jobbers Drill, Edp 47233
In stock
(9)
Chicago-Latrobe Jobber Length Drill Bit, General Purpose, Series: 150, Metric/Imperial, 1.5 mm Drill - Metric, 0.0591 in Drill - Decimal Inch, 40 mm Overall Length, 5XD Cutting Depth, 2 Flutes, Right Spiral Flute, 18 mm Flute Length, 1.5 mm Dia x 22 mm L Shank, Straight Shank, 118 deg Point, Radial Point, Right Hand Cutting Direction, HSS Cutting Edge, No Through Coolant, HSS, Black Oxide, Applicable Materials: Carbon Steel and Cast Iron
Features
- General purpose geometry for drilling in a wide range of operating conditions and materials
Specifications
Applicable MaterialsCarbon Steel and Cast Iron
Cutting Depth5XD
Cutting DirectionRight Hand
Cutting Edge MaterialHSS
Drill Diameter Measurement SystemMetric/Imperial
Drill Size - Decimal Inch0.0591 in
Drill Size - Metric1.5 mm
FinishBlack Oxide
Flute Length18 mm
Flute TypeRight Spiral
MaterialHSS
Number of Flutes2
Overall Length40 mm
Point Angle118 deg
Point TypeRadial
Series150
Shank Size1.5 mm Dia x 22 mm L
Shank TypeStraight
Through Coolant (Yes/No)No
TypeGeneral Purpose
Additional Information
Standards/ApprovalDIN 338
Country of OriginUS
