Chicago-Latrobe PRO 42612

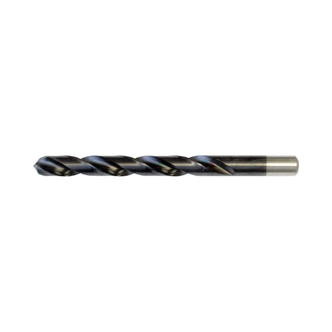

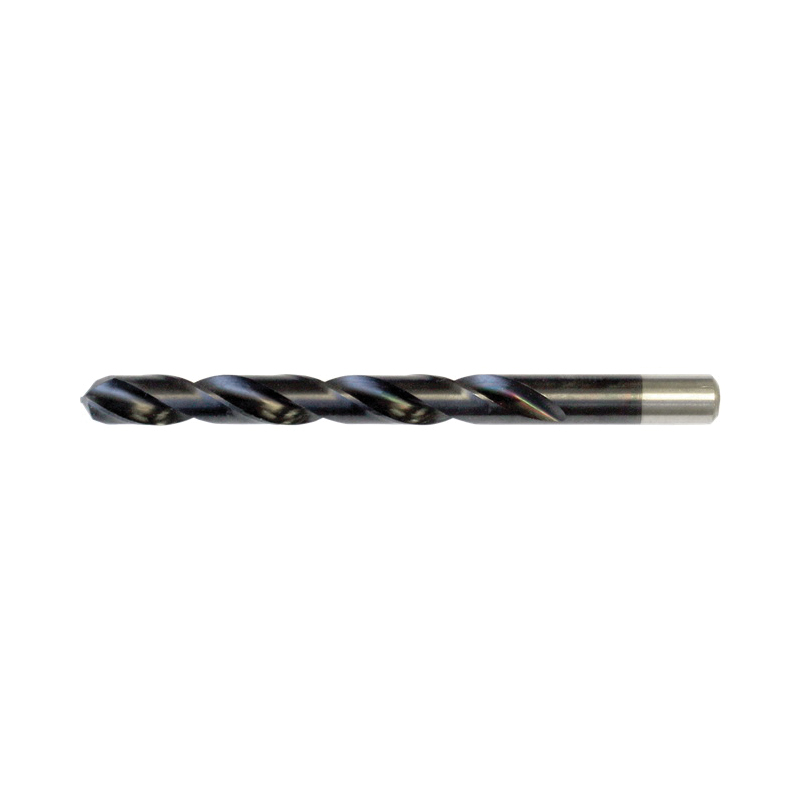

Chicago-Latrobe 42612 150ASP-TA Heavy Duty Jobber Length Drill Bit, 3/16 in Drill - Fraction, 0.1875 in Drill - Decimal Inch, 135 deg Point, HSS, TiAlN Coated
Invoice description:
3/16 #150aspta 135 Deg. Jobbers Drill, Edp 4
In stock
(10)
Chicago-Latrobe Jobber Length Drill Bit, Heavy Duty, Series: 150ASP-TA, Imperial, 3/16 in Drill - Fraction, 0.1875 in Drill - Decimal Inch, 3-1/2 in Overall Length, 5XD Cutting Depth, 2 Flutes, Right Spiral Flute, 2-5/16 in Flute Length, 3/16 in Dia x 1-3/16 in L Shank, Straight Shank, 135 deg Point, Split Point, Right Hand Cutting Direction, HSS Cutting Edge, No Through Coolant, HSS, TiAlN Coated, Applicable Materials: Alloy Steel, Cast Iron, Stainless Steel, Tool Steel and Titanium
Features
- Heavy duty construction for drilling in tougher materials
- 135 deg P3 split point is self-centering for reduced thrust and easier penetration
Specifications
ApplicationFor drilling in tougher materials
Applicable MaterialsAlloy Steel, Cast Iron, Stainless Steel, Tool Steel and Titanium
Cutting Depth5XD
Cutting DirectionRight Hand
Cutting Edge MaterialHSS
Drill Diameter Measurement SystemImperial
Drill Size - Decimal Inch0.1875 in
Drill Size - Fraction3/16 in
FinishTiAlN Coated
Flute Length2-5/16 in
Flute TypeRight Spiral
MaterialHSS
Number of Flutes2
Overall Length3-1/2 in
Point Angle135 deg
Point TypeSplit
Series150ASP-TA
Shank Size3/16 in Dia x 1-3/16 in L
Shank TypeStraight
Through Coolant (Yes/No)No
TypeHeavy Duty
Additional Information
Standards/ApprovalNAS 907
Country of OriginUS
