Drillco PRO 1000EC136

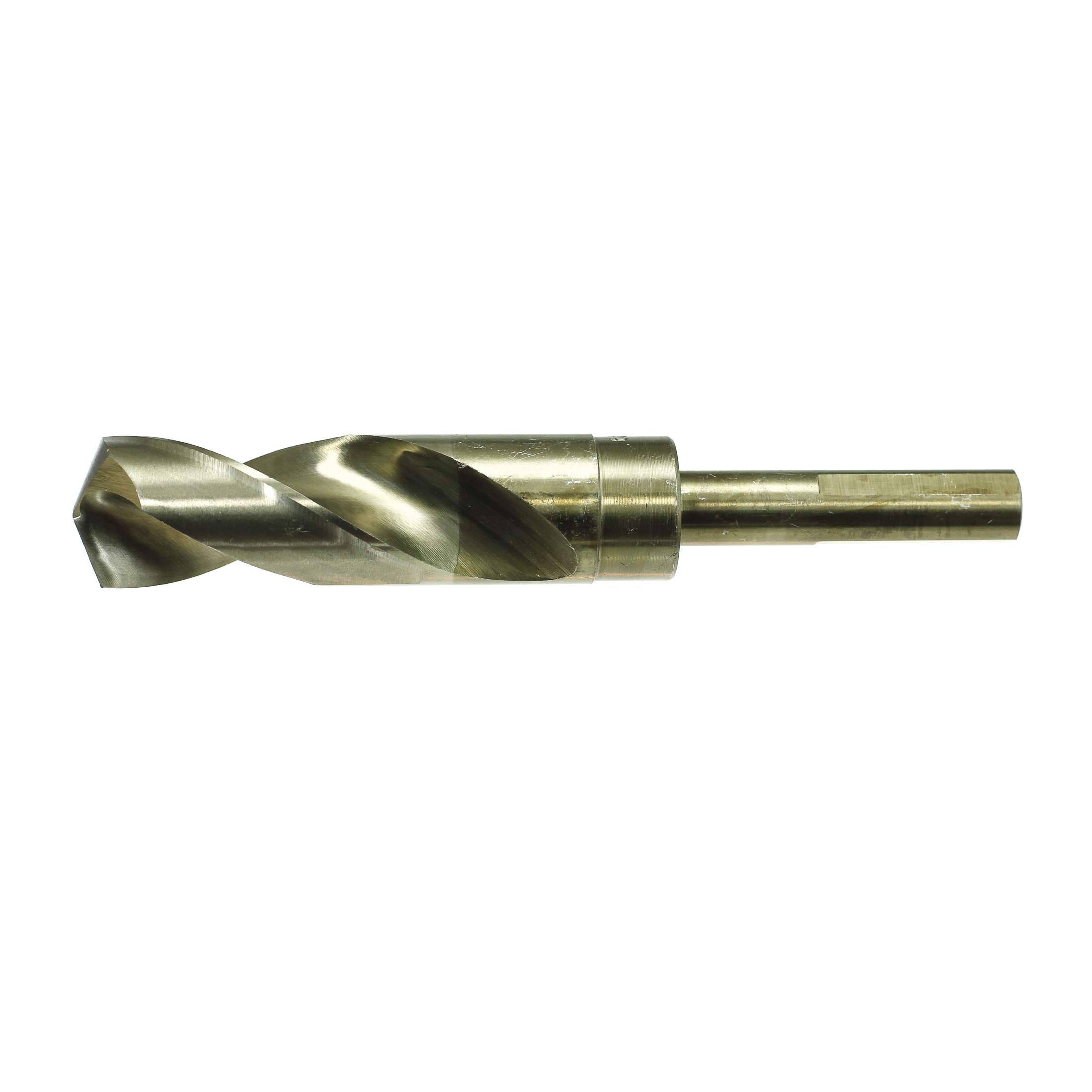

Drillco 1000EC136 Imperial Silver and Deming Drill, 9/16 in Drill - Fraction, 0.5625 in Drill - Decimal Inch, 1/2 in Shank, Cobalt
In stock
(4)
Drillco Silver and Deming Drill, Imperial, Series: 1000EC, 9/16 in Drill - Fraction, 0.5625 in Drill - Decimal Inch, 6 in Overall Length, 3 in Cutting Depth, Spiral Flute, 3 in Flute Length, 1/2 in Shank, Reduced Shank, 135 deg Point, Split/Self-Centering Point, Cobalt Cutting Edge, Cobalt, Bronze, Applicable Materials: Tough and High Tensile Strength Materials
Features
- Expands the size range capacity of a 1/2 in portable drill chuck
- Common flute and overall length for minimal adjustment during tool changes
- Precision ground for high degree of concentricity between shank and body diameter
- The 135 deg split point reduces thrust and eliminates walking at the drill point
Specifications
Applicable MaterialsTough and High Tensile Strength Materials
Cutting Depth3 in
Cutting Edge MaterialCobalt
Drill Size - Decimal Inch0.5625 in
Drill Size - Fraction9/16 in
FinishBronze
Flute Length3 in
Flute TypeSpiral
MaterialCobalt
Overall Length6 in
Point Angle135 deg
Point TypeSplit/Self-Centering
Series1000EC
Shank Size1/2 in
Shank TypeReduced
TypeImperial
