GARR GARR 38098

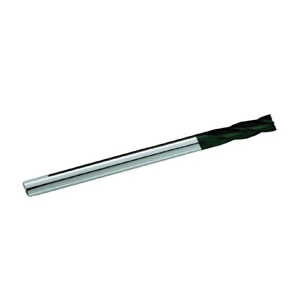

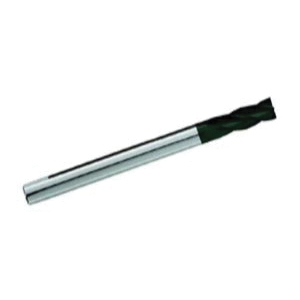

GARR 38098 610D Center Cutting Extra Length Square End Mill, 5/16 in Dia Cutter, 1 in Length of Cut, 4 Flutes, 5/16 in Dia Shank, 4 in OAL, Crystalline Diamond Coated

UNSPSC: 27112803
Manufacturer PN: 38098
$220.74 EA
Factory Order
Estimated to ship in 7 days
QTY:


GARR End Mill, Center Cutting Extra Length Square End, Series: 610D, 5/16 in Diameter Cutter, 4 in Overall Length, 1 in Length of Cut, 4 Flutes, Helix Flute, 5/16 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Grade C-2 Solid Carbide, Crystalline Diamond Coated

  • Features

  • Up to 17 times tool life versus uncoated end mills
  • For graphite, fiber reinforced plastics, carbon fiber and high silicon aluminum

Specifications

ApplicationFor graphite, fiber reinforced plastics, carbon fiber and high silicon aluminum
Cutter Diameter5/16 in
Cutting DirectionRight Hand
FinishCrystalline Diamond Coated
Flute TypeHelix
Helix Angle30 deg
Length of Cut1 in
MaterialGrade C-2 Solid Carbide
Number of Flutes4
Overall Length4 in
Series610D
Shank Diameter5/16 in
TypeCenter Cutting Extra Length Square End
