GARR GARR 34087

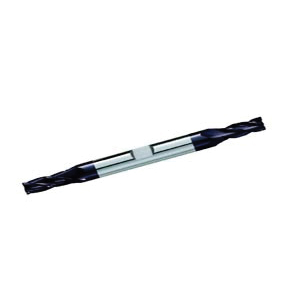

GARR 34087 Center Cutting Double End Square End End Mill, 11/32 in Dia Cutter, 3/4 in Length of Cut, 4 Flutes, 3/8 in Dia Shank, 4 in OAL, TiAlN Coated
Invoice description:
Em 11/32x3/4locx3/8x4 4fl Tialn Dbl
Factory Order
GARR End Mill, Center Cutting Double End Square End, Series: 435MA, 11/32 in Diameter Cutter, 4 in Overall Length, 3/4 in Length of Cut, 4 Flutes, Helix Flute, 3/8 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Weldon Flat Shank, Submicron Solid Carbide, TiAlN Coated
Features
- Common 3/8 in dia shanks with Weldon flat
- For strength and adaptability when converting from high speed steel
- Up to 40% faster than uncoated
Specifications
ApplicationDry or Semi-Dry Machining
Cutter Diameter11/32 in
Cutting DirectionRight Hand
FinishTiAlN Coated
Flute TypeHelix
Helix Angle30 deg
Length of Cut3/4 in
MaterialSubmicron Solid Carbide
Number of Flutes4
Overall Length4 in
Series435MA
Shank Diameter3/8 in
Shank TypeWeldon Flat
TypeCenter Cutting Double End Square End
Additional Information
Country of OriginUS
Specification Sheet
