GARR GARR 33047

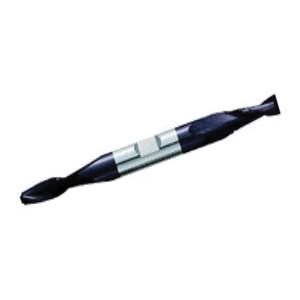

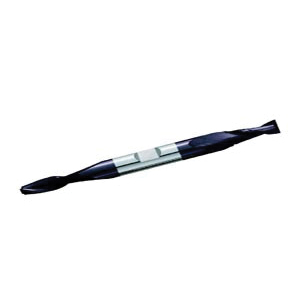

GARR 33047 Center Cutting Double End Square End End Mill, 7/32 in Dia Cutter, 9/16 in Length of Cut, 2 Flutes, 3/8 in Dia Shank, 3 in OAL, TiAlN Coated
Invoice description:
Em 7/32x9/16locx3/8x3 2fl Tialn Dbl
Factory Order
GARR End Mill, Center Cutting Double End Square End, Series: 425MA, 7/32 in Diameter Cutter, 3 in Overall Length, 9/16 in Length of Cut, 2 Flutes, Helix Flute, 3/8 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Weldon Flat Shank, Submicron Solid Carbide, TiAlN Coated
Features
- Common 3/8 in dia shanks with Weldon flat
- For strength and adaptability when converting from high speed steel
- Up to 40% faster than uncoated
Specifications
ApplicationDry or Semi-Dry Machining
Cutter Diameter7/32 in
Cutting DirectionRight Hand
FinishTiAlN Coated
Flute TypeHelix
Helix Angle30 deg
Length of Cut9/16 in
MaterialSubmicron Solid Carbide
Number of Flutes2
Overall Length3 in
Series425MA
Shank Diameter3/8 in
Shank TypeWeldon Flat
TypeCenter Cutting Double End Square End
Additional Information
Country of OriginUS
