GARR GARR 33017

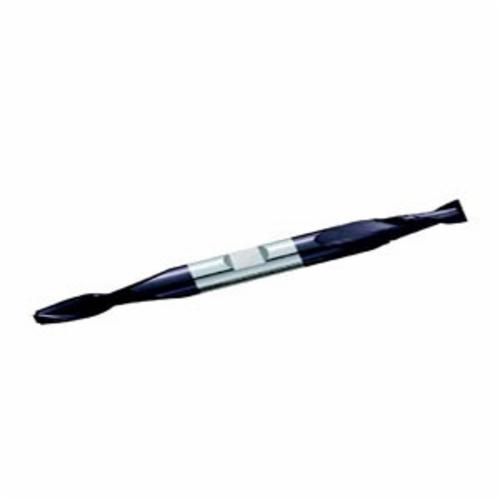

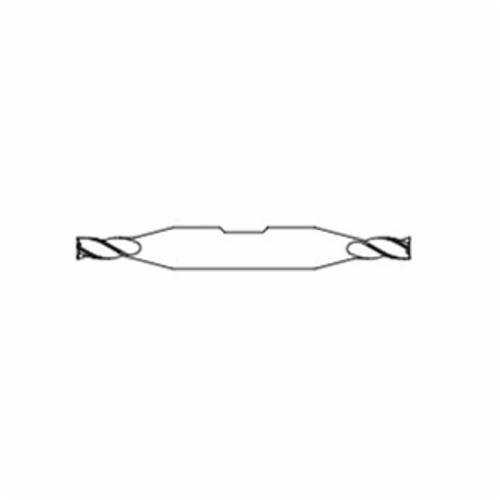

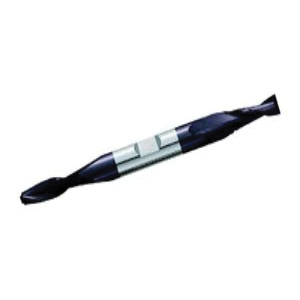

GARR 33017 Center Cutting Double End Standard Length End Mill, 1/8 in Dia Cutter, 3/8 in Length of Cut, 2 Flutes, 3/8 in Dia Shank, 3 in OAL, TiALN Coated

Invoice description: Em 1/8x3/8locx3/8x3 2fl Tialn Dbl

UNSPSC: 23242511
Manufacturer PN: 33017
$62.66 EA
Factory Order
Estimated to ship in 7 days
QTY:


GARR End Mill, Center Cutting Double End Standard Length, Series: 425MA, 1/8 in Diameter Cutter, 3 in Overall Length, 3/8 in Length of Cut, 2 Flutes, 3/8 in Shank Diameter, 30 deg Helix Angle, Weldon Flat Shank, 2-5/8 in Shank Length, Solid Submicron Carbide, TiALN Coated

  • Features

  • Common 3/8 in dia shanks with Weldon flat
  • For strength and adaptability when converting from high speed steel
  • Up to 40% faster than uncoated

Specifications

ApplicationDry or Semi-Dry Machining
Cutter Diameter1/8 in
FinishTiALN Coated
Helix Angle30 deg
Length of Cut3/8 in
MaterialSolid Submicron Carbide
Number of Flutes2
Overall Length3 in
Series425MA
Shank Diameter3/8 in
Shank Length2-5/8 in
Shank TypeWeldon Flat
TypeCenter Cutting Double End Standard Length

Additional Information

Country of OriginUS
