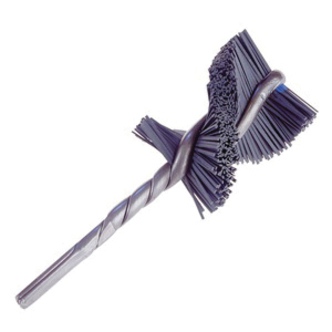

Osborn OSB 36394

Osborn ATB™ 36394 Internal Rectangular Filament Side Action Tube Brush, 1 in Dia x 2 in L, 4-7/8 in OAL, 0.03 x 0.07 in Dia Filament/Wire, Nylon/Silicon Carbide Fill

UPC: 622424363945
UNSPSC: 27113002
Manufacturer PN: 36394
$109.94 EA
Factory Order
Estimated to ship in 14 days
QTY:


Osborn ATB™ Tube Brush, Internal Rectangular Filament Side Action, 1 in Brush Dia, 2 in Brush Length, 4-7/8 in Overall Length, Nylon/Silicon Carbide Fill, 0.03 x 0.07 in Filament/Wire, 1/4 in Stem Dia, Single Spiral, Twisted Stem

  • Features

  • Features tough nylon filaments packed with super hard silicon carbide grit for more aggressive finishing and longer brush life
  • The extruded nylon monofilament has a flat, rectangular cross section which brings twice as much of the silicon carbide grit in contact with the surface
  • The brush is made larger than the nominal diameters to be finished, creating a highly efficient side swiping action
  • Their helical brush shape and flexible filaments allow them to be used in both rotational directions for longer work life
  • These brushes can be used wet or dry at operational speeds approximately 600 to 1400 rpm

Specifications

ApplicationFor automated, manual deburring, honing, edge contouring, id work on cylinders, camshaft bores, valve bodies, pistons and blocks
TypeInternal Rectangular Filament Side Action
Brush Diameter1 in
Brush Length2 in
Overall Length4-7/8 in
Fill MaterialNylon/Silicon Carbide
Filament/Wire Diamet0.03 x 0.07 in
Stem Diameter1/4 in
Spiral TypeSingle
Handle TypeTwisted Stem
