MARXMAN MOR 81664

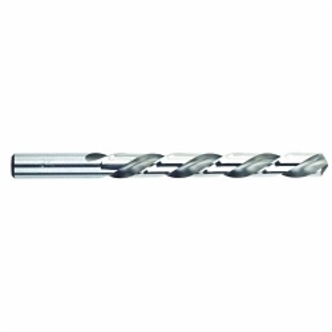

MARXMAN 81664 330L General Purpose Jobber Length Drill Bit, 17/64 in Drill - Fraction, 0.2656 in Drill - Decimal Inch, 118 deg Point, HSS, Bright

Invoice description: Drill Bit 17/64 Left Han D

UPC: 683420816644
UNSPSC: 23241606
Manufacturer PN: 81664
$13.44 EA
Factory Order
Estimated to ship in 14 days
QTY:


MARXMAN Jobber Length Drill Bit, General Purpose, Series: 330L, Imperial, 17/64 in Drill - Fraction, 0.2656 in Drill - Decimal Inch, 4-1/8 in Overall Length, 2-7/8 in Cutting Depth, Standard Flute, 2-7/8 in Flute Length, 17/64 in Shank, Straight Shank, 118 deg Point, Standard Point, Left Hand Cutting Direction, HSS Cutting Edge, No Through Coolant, HSS, Bright

  • Features

  • Used extensively in screw machine operations and in close center multiple spindle gear driven drilling heads where adjacent spindles operate alternately right and left hand

Specifications

ApplicationFor screw machine
Cutting Depth2-7/8 in
Cutting DirectionLeft Hand
Cutting Edge MaterialHSS
Drill Diameter Measurement SystemImperial
Drill Size - Decimal Inch0.2656 in
Drill Size - Fraction17/64 in
FinishBright
Flute Length2-7/8 in
Flute TypeStandard
MaterialHSS
Overall Length4-1/8 in
Point Angle118 deg
Point TypeStandard
Series330L
Shank Size17/64 in
Shank TypeStraight
Through Coolant (Yes/No)No
TypeGeneral Purpose

Additional Information

Standards/ApprovalDIN 338|ISO 9001:2008
Country of OriginUS
