GARR GARR 28781

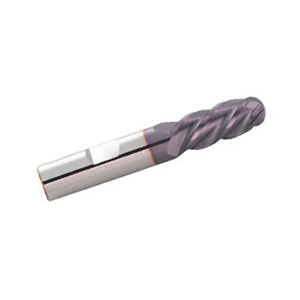

GARR 28781 VRX Ball End Center Cutting Rougher/Finisher End Mill, 14 mm Dia Cutter, 19 mm Length of Cut, 4 Flutes, 14 mm Dia Shank, 75 mm OAL, AlTiN/X.CEED Coated

UNSPSC: 27112803
Manufacturer PN: 28781
$122.70 EA
Factory Order
Estimated to ship in 7 days
QTY:


GARR End Mill, Ball End Center Cutting Rougher/Finisher, Series: VRX, 14 mm Cutter Dia, 75 mm Overall Length, 19 mm Length of Cut, 4 Flutes, Staggered Flute, 14 mm Shank Dia, Right Hand Cutting, 41 deg Helix Angle, Plain Shank, Submicron Solid Carbide, AlTiN/X.CEED Coated

  • Features

  • The standard in high performance milling
  • Reduces vibration for more aggressive machining
  • For stainless steel, inconel, pH materials, titanium and tool steels
  • Ball radius tolerance +0.000 to 0.001 in (+0.000 to 0.025 mm)

Specifications

ApplicationFor stainless steel, inconel, pH materials, titanium and tool steels >40Rc
Cutter Diameter14 mm
Cutting DirectionRight Hand
FinishAlTiN/X.CEED Coated
Flute TypeStaggered
Helix Angle41 deg
Length of Cut19 mm
MaterialSubmicron Solid Carbide
Number of Flutes4
Overall Length75 mm
SeriesVRX
Shank Diameter14 mm
Shank TypePlain
TypeBall End Center Cutting Rougher/Finisher
