MMM MIDM 58025

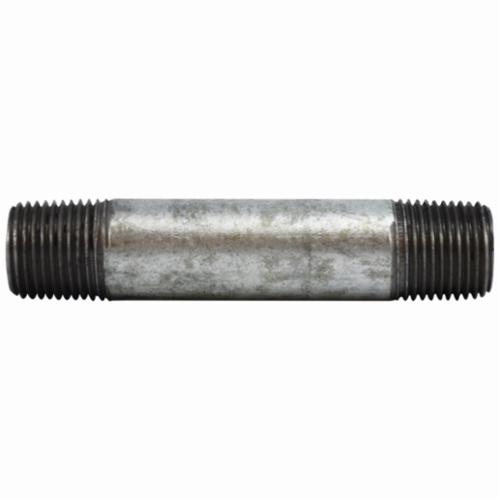

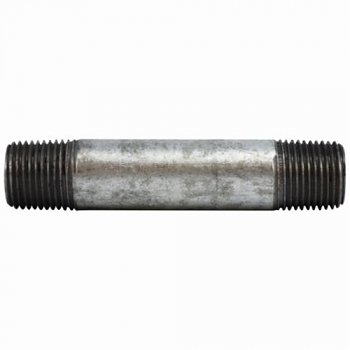

MMM Pipe Nipple, Extra Heavy, Fitting/Connector Type: Nipple, 1/4 x 3-1/2 in Nominal, NPT End Style, SCH 80/XH Schedule, 0.119 in Thickness, Welded Method of Manufacture, Steel, Galvanized, -200 to 150 deg F

• Features

• All pipe is hydrostatic tested
• Steel and wrought iron welded
• Zinc coating applied by hot dipped
• 0.302 in ID x 0.54 in OD
• All pipe is roller cut, a visual inspection of seams, excessive galvanizing, mid-welds, poor galvanizing, bends, roundness, under and over weight of the pipe is made at the time it is cut
• 33.7 kg/sq-mm at 48000 psi, 20 kg/sq-mm at 28500 psi tensile strength
• Pipe lengths are cut to a tolerance of or - 1/16 in of the actual length
• All pipe is chaser thread cut to American standard tapered pipe thread standards
• 3/4 in taper per foot
• Pipe is visually inspected for roundness of threads and other visual faults as it is removed from the threading machine
