MMM MIDM 28194L

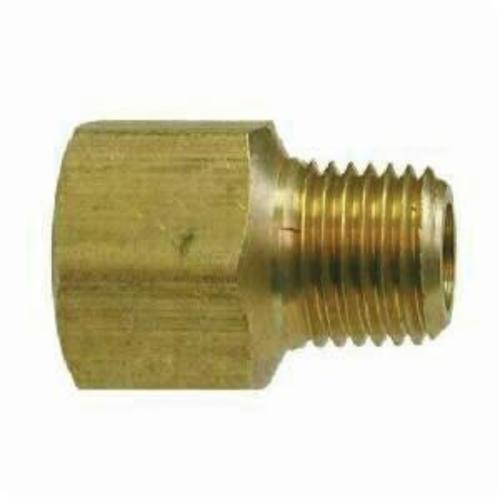

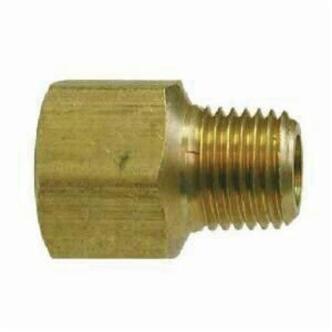

MMM 28194L Light Pattern Extension Adapter, 3/8 in Nominal, MNPT x FNPT End Style, Brass, Import

Invoice description: Adapt 3/8x3/8 Lp Fipxmip

UNSPSC: 40171701
Manufacturer PN: 28194L
$3.10 EA
Factory Order
Estimated to ship in 7 days
QTY:


MMM Extension Adapter, Light Pattern, Adapter Fitting/Connector, 3/8 in Nominal, MNPT x FNPT End Style, 0.81 in Hex, 1.24 in Length, 1200 psi Pressure, Brass, -65 to 250 deg F, Domestic/Import: Import

  • Features

  • Fair resistance vibration
  • Used with brass, bronze, copper, steel, aluminum and iron pipe
  • /- 0.02 tolerance on all dimensions
  • 3/8-18 thread Size
  • Fittings are completely interchangeable with full pattern fittings, but have been modified in some way
  • Modification is usually in the length of the pipe threads

Specifications

ApplicationFor plumbing and light industrial applications
Domestic/ImportImport
End StyleMNPT x FNPT
Fitting/Connector TypeAdapter
Hex Size0.81 in
Length1.24 in
MaterialBrass
Nominal Size3/8 in
Pressure Rating1200 psi
Temperature Rating-65 to 250 deg F
TypeLight Pattern

Additional Information

Standards/ApprovalASA Certified|ASME Specified|SAE 130139
Country of OriginCN
