MMM MIDM 28156S

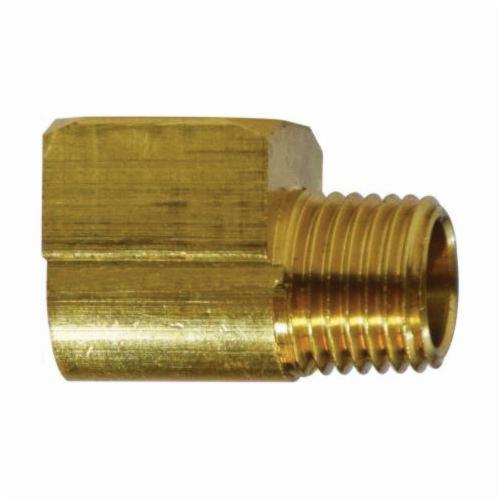

MMM 28156S Short Pattern 90 deg Street Elbow, 1/8 in Nominal, MNPT x FNPT End Style, Brass, Import

Invoice description: Elbow 1/8 Mipxfip Shrt B S

UNSPSC: 27121800
Manufacturer PN: 28156S
$1.38 EA
Factory Order
Estimated to ship in 7 days
QTY:


MMM Street Elbow, Short Pattern, Fitting/Connector Type: 90 deg Elbow, 1/8 in Nominal, MNPT x FNPT, 1200 psi, Brass, -65 to 250 deg F, 1/2 in W/0.34 x 0.57 in, Import

  • Features

  • Fair resistance vibration
  • Used with brass, bronze, copper, steel, aluminum and iron pipe
  • /- 0.02 tolerance on all dimensions
  • 1/8-27 thread size

Specifications

ApplicationFor grease, fuels, LP and natural Gas (available on special order), refrigeration, instrumentation and hydraulic systems
Dimensions1/2 in W/0.34 x 0.57 in
Domestic/ImportImport
End StyleMNPT x FNPT
Fitting/Connector Type90 deg Elbow
MaterialBrass
Nominal Size1/8 in
Pressure Rating1200 psi
Temperature Rating-65 to 250 deg F
TypeShort Pattern

Additional Information

Standards/ApprovalASA Certified|ASME Specified|SAE 130239
Country of OriginCN
