Midland Industries MIDM 28104

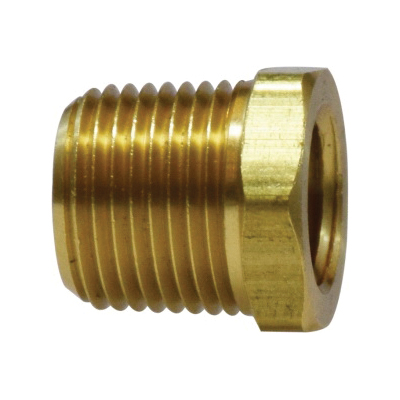

Midland Industries 28104 Hex Head Bushing, 3/8 x 1/4 in Nominal, MNPT x FNPT End Style, Brass, Import

Invoice description: Bushing 3/8x1/4 Mipxfip Bs

UNSPSC: 40172306
Manufacturer PN: 28104
$1.96 EA
Factory Order
Estimated to ship in 7 days
QTY:


Midland Industries Bushing, Hex Head, Fitting/Connector Type: Bushing, 3/8 x 1/4 in Nominal, MNPT x FNPT, 3/4 in Hex, 3/4 in Length, 1200 psi, Brass, -65 to 250 deg F, Import

  • Features

  • Fair resistance vibration
  • Used with brass, bronze, copper, steel, aluminum and iron pipe
  • /- 0.02 tolerance on all dimensions
  • 3/8-18 x 1/4-18 thread size

Specifications

ApplicationFor grease, fuels, LP and natural Gas (available on special order), refrigeration, instrumentation and hydraulic systems
Domestic/ImportImport
End StyleMNPT x FNPT
Fitting/Connector TypeBushing
Hex Size3/4 in
Length3/4 in
MaterialBrass
Nominal Size3/8 x 1/4 in
Pressure Rating1200 psi
Temperature Rating-65 to 250 deg F
TypeHex Head

Additional Information

Standards/ApprovalASA Certified|ASME Specified|SAE 130140
Country of OriginTW
