MMM MIDM 28070

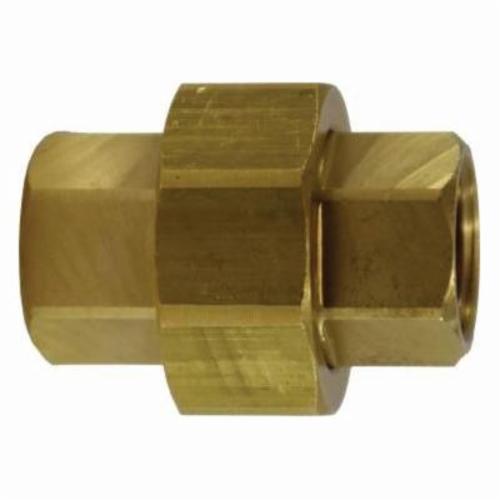

MMM 28070 Pipe Union, 1/2 in Nominal, FNPT End Style, Brass, Import

Invoice description: 1/2 Fip Bs Union

UNSPSC: 40174906
Manufacturer PN: 28070
$28.98 EA
Factory Order
Estimated to ship in 10 days
QTY:


MMM Pipe Union, Fitting/Connector Type: Union, 1/2 in Nominal, FNPT, 1.56 in Hex, 1.79 in Length, 1200 psi, Brass, -65 to 250 deg F, Import

  • Features

  • Fair resistance vibration
  • Used with brass, bronze, copper, steel, aluminum and iron pipe
  • /- 0.02 tolerance on all dimensions
  • 1/2-14 thread size

Specifications

ApplicationFor grease, fuels, LP and natural Gas (available on special order), refrigeration, instrumentation and hydraulic systems
Domestic/ImportImport
End StyleFNPT
Fitting/Connector TypeUnion
Hex Size1.56 in
Length1.79 in
MaterialBrass
Nominal Size1/2 in
Pressure Rating1200 psi
Temperature Rating-65 to 250 deg F

Additional Information

Standards/ApprovalASA Certified|ASME Specified|SAE Approved
Country of OriginCN
