Midland Industries MIDM 28068

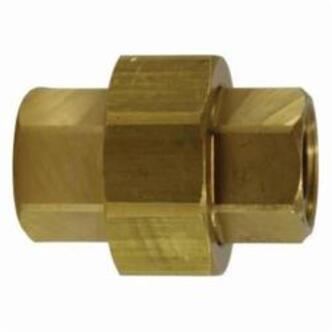

Midland Industries 28068 Pipe Union, 1/4 in Nominal, FNPT End Style, Brass, Import

Invoice description: 1/4 Fip Bs Union

UNSPSC: 40174906
Manufacturer PN: 28068
$19.88 EA
Factory Order
Estimated to ship in 14 days
QTY:


Midland Industries Pipe Union, Fitting/Connector Type: Union, 1/4 in Nominal, FNPT, 1.06 in Hex, 1.31 in Length, 1200 psi, Brass, -65 to 250 deg F, Import

  • Features

  • Fair resistance vibration
  • Used with brass, bronze, copper, steel, aluminum and iron pipe
  • /- 0.02 tolerance on all dimensions
  • 1/4-18 thread size

Specifications

ApplicationFor grease, fuels, LP and natural Gas (available on special order), refrigeration, instrumentation and hydraulic systems
Domestic/ImportImport
End StyleFNPT
Fitting/Connector TypeUnion
Hex Size1.06 in
Length1.31 in
MaterialBrass
Nominal Size1/4 in
Pressure Rating1200 psi
Temperature Rating-65 to 250 deg F

Additional Information

Standards/ApprovalASA Certified|ASME Specified|SAE Approved
Country of OriginCN
