GARR GARR 26706

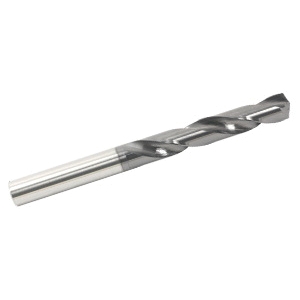

GARR 26706 1880KH High Performance Jobber Length Drill Bit, O Drill - Letter, 0.316 in Drill - Decimal Inch, 140 deg Point, Submicron Grain Solid Carbide, TiAlN Coated
Invoice description:
Drill O (0.316) 7xd Crb Hp140 C/t Tialn
Factory Order
GARR Jobber Length Drill Bit, High Performance, Series: 1880KH, Imperial, O Drill - Letter, 0.316 in Drill - Decimal Inch, 4.688 in Overall Length, 7XD Cutting Depth, 2 Flutes, Spiral Flute, 2-11/16 in Flute Length, 0.316 in Shank, 140 deg Point, Submicron Grain Solid Carbide Cutting Edge, Yes Through Coolant, Submicron Grain Solid Carbide, TiAlN Coated, Applicable Materials: High Nickel, High Temperature Alloy, Cobalt Based Alloy, Stainless Steel and Tool Steel
Features
- Coolant through capabilities for high pressure coolant systems
- Extended tool life and greater surface finish through faster SFM rates
- Up to 70% faster than standard carbide drills
- 30 deg helix for better chip evacuation
- Live tooling recommended on lathe processes
- Honed cutting edge
Specifications
Applicable MaterialsHigh Nickel, High Temperature Alloy, Cobalt Based Alloy, Stainless Steel and Tool Steel
Cutting Depth7XD
Cutting Edge MaterialSubmicron Grain Solid Carbide
Drill Diameter Measurement SystemImperial
Drill Size - Decimal Inch0.316 in
Drill Size - LetterO
FinishTiAlN Coated
Flute Length2-11/16 in
Flute TypeSpiral
MaterialSubmicron Grain Solid Carbide
Number of Flutes2
Overall Length4.688 in
Point Angle140 deg
Series1880KH
Shank Size0.316 in
Through Coolant (Yes/No)Yes
TypeHigh Performance
Additional Information
Country of OriginUS
Specification Sheet
