GARR GARR 25940

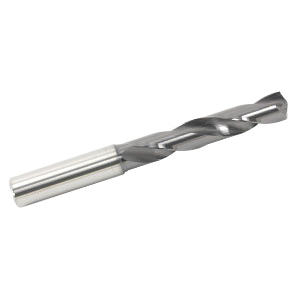

GARR 25940 High Performance Jobber Length Drill Bit, 12.4 mm Drill - Metric, 0.4881 in Drill - Decimal Inch, 140 deg Point, Submicron Grain Solid Carbide, TiAlN Coated
Invoice description:
Drill Jl 12.4mm (0.4881) Crb Hp 140 Tialn 5xd
Factory Order
GARR Jobber Length Drill Bit, High Performance, Series: 1280KD, Metric, 12.4 mm Drill - Metric, 0.4881 in Drill - Decimal Inch, 124 mm Overall Length, 5XD Cutting Depth, 2 Flutes, Spiral Flute, 77 mm Flute Length, 14 mm Dia x 45 mm L Shank, Cylindrical Shank, 140 deg Point, Submicron Grain Solid Carbide Cutting Edge, Through Coolant: Yes, Submicron Grain Solid Carbide, TiAlN Coated, Applicable Materials: High Nickel, High Temperature Alloy, Cobalt Based Alloy, Stainless Steel and Tool Steel
Features
- Coolant through capabilities for high pressure coolant systems
- Up to 70% faster than standard carbide drills
- 30 deg helix for better chip evacuation
- Can be used as a pilot drill
- Live tooling recommended on lathe processes
- Honed cutting edge
Specifications
Applicable MaterialsHigh Nickel, High Temperature Alloy, Cobalt Based Alloy, Stainless Steel and Tool Steel
Cutting Depth5XD
Cutting Edge MaterialSubmicron Grain Solid Carbide
Drill Diameter Measurement SystemMetric
Drill Size - Decimal Inch0.4881 in
Drill Size - Metric12.4 mm
FinishTiAlN Coated
Flute Length77 mm
Flute TypeSpiral
MaterialSubmicron Grain Solid Carbide
Number of Flutes2
Overall Length124 mm
Point Angle140 deg
Series1280KD
Shank Size14 mm Dia x 45 mm L
Shank TypeCylindrical
Through Coolant (Yes/No)Yes
TypeHigh Performance
Additional Information
Standards/ApprovalDIN 6537/6535 HA
Country of OriginUS
Catalog
