KEO KEO 75084

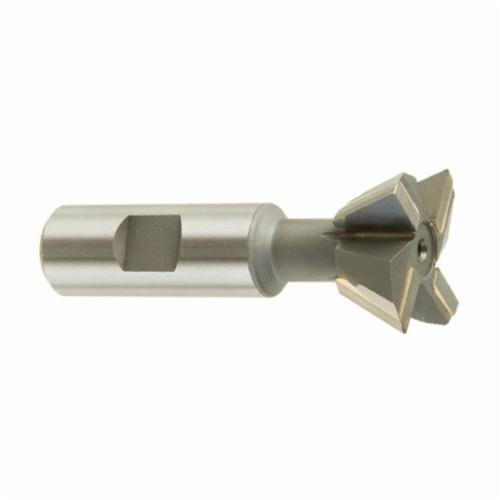

KEO 75084 Straight Tooth Dovetail Cutter, 1 in Dia Cutter, 1/4 in W Cutting, 1/2 in Dia Straight/Weldon Flat Shank, 45 deg Included, 2-1/2 in OAL

Invoice description: 1" 45 Deg Hs Dovetail Cu Tter, 75084

UNSPSC: 23241632
Manufacturer PN: 75084
$140.16 EA
Factory Order
Estimated to ship in 14 days
QTY:


KEO Dovetail Cutter, Straight Tooth, 1 in Cutter Dia, 2-1/2 in Overall Length, 1/4 in Cutting Width, 1/2 in Shank Dia, Straight/Weldon Flat Shank, 10 Teeth, 45 deg Included Angle, ISO Code: ISO 9001:2008, HSS, Uncoated

  • Features

  • 45 deg cutter
  • High-speed steel tools are good for most general purpose applications, offering a combination of hardness and toughness for wear resistance
  • Uncoated tools feature just the base substrate without any additional treatment or coatings and are suitable for a wide range of applications
  • Weldon shanks feature a round shank with one of more flats machined into the side for easy indexing and alignment
  • When run in a counterclockwise direction spiral fluted tools evacuate chips up and out of the cut to reduce clogging

Specifications

ApplicationFor general purpose milling
Cutter Diameter1 in
Cutting Width1/4 in
FinishUncoated
Included Angle45 deg
ISO CodeISO 9001:2008
MaterialHSS
Number of Teeth10
Overall Length2-1/2 in
Shank Diameter1/2 in
Shank TypeStraight/Weldon Flat
TypeStraight Tooth

Additional Information

Standards/ApprovalISO 9001:2008
Country of OriginUS
