KEO KEO 12570

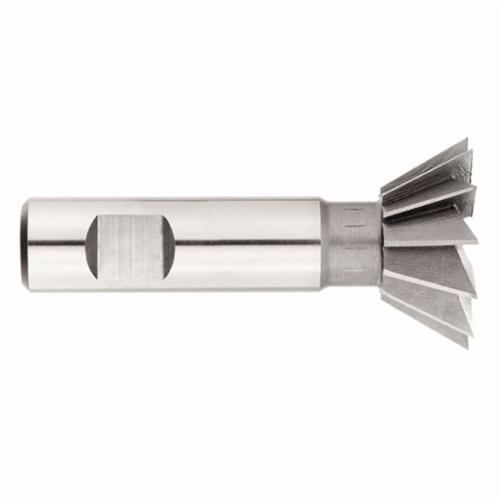

KEO 12570 DT456 Single Angle Dovetail Cutter, 1/2 in Dia Cutter, 7/32 in W Cutting, 3/8 in Dia Straight Shank, 60 deg Included, 2-1/8 in OAL
Factory Order
KEO Dovetail Cutter, Single Angle, Series: DT456, 1/2 in Diameter Cutter, 2-1/8 in Overall Length, 7/32 in Cutting Width, 3/8 in Shank Diameter, Straight Shank, 8 Teeth, 60 deg Included Angle, HSS, Uncoated
Features
- 60 deg angle
- +/-0.015 in cutting diameter tolerance
- +/-0.06 in overall length tolerance
Specifications
ApplicationFor dovetail and angle cutting
Cutter Diameter1/2 in
Cutting Width7/32 in
FinishUncoated
Included Angle60 deg
MaterialHSS
Number of Teeth8
Overall Length2-1/8 in
SeriesDT456
Shank Diameter3/8 in
Shank TypeStraight
TypeSingle Angle
