KEO KEO 10500

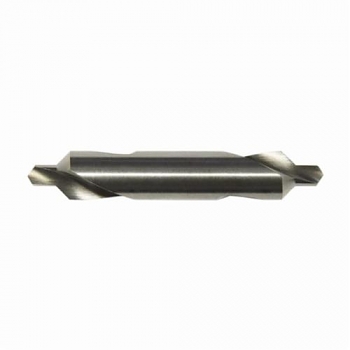

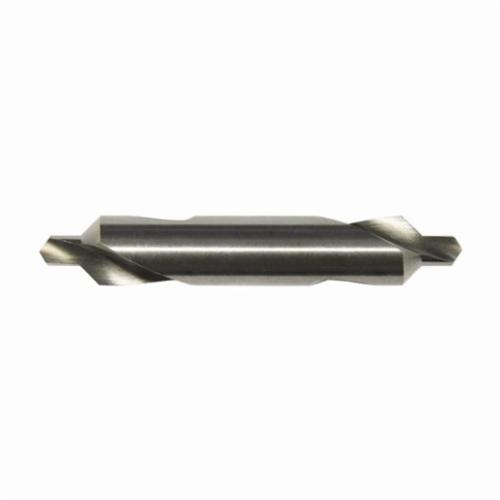

KEO 10500 Aircraft Double End Plain Standard Combined Drill and Countersink, 3/16 in Drill - Fraction, 0.1875 in Drill - Decimal Inch, 60 deg Included Angle, 118 deg Point Angle, HSS, Bright
In stock
(11)
KEO Combined Drill and Countersink, Aircraft Double End Plain Standard, 3/16 in Drill Size - Fraction, 0.1875 in Drill Size - Decimal Inch, #5 Point Dia, 7/16 in Body Dia, 2-3/4 in Overall Length, 2 Flutes, Spiral Flute, 7/16 in Shank, Round Shank, 118 deg Point, 60 deg Included Angle, Right Hand Cutting, HSS Cutting Edge, HSS, Bright, Applicable Materials: Steel and Other Ferrous Materials
Features
- 3/16 in L point
- Drill and chamfer in one pass
- HSS is the most popular general purpose tool steel
- Extra length permits access to hard-to-reach applications
- HSS provides good wear resistance
- For producing center holes in components or work pieces with the extra length allowing access to difficult-to-reach areas
Specifications
ApplicationFor producing center holes in components or workpieces which require machining between centers
Applicable MaterialsSteel and Other Ferrous Materials
Body Diameter7/16 in
Cutting DirectionRight Hand
Cutting Edge MaterialHSS
Drill Size - Decimal Inch0.1875 in
Drill Size - Fraction3/16 in
FinishBright
Flute TypeSpiral
Included Angle60 deg
MaterialHSS
Number of Flutes2
Overall Length2-3/4 in
Point Angle118 deg
Point Diameter#5
Shank Size7/16 in
Shank TypeRound
TypeAircraft Double End Plain Standard
