GARR GARR 24378

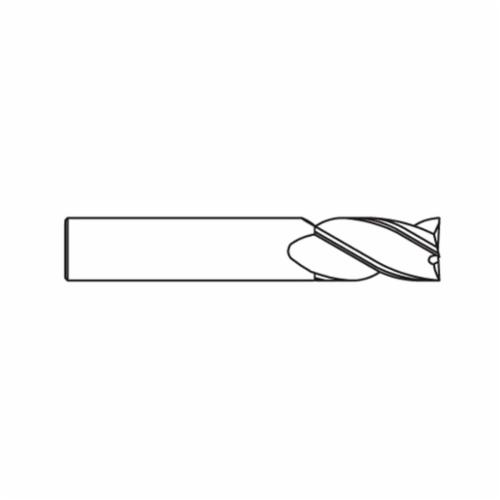

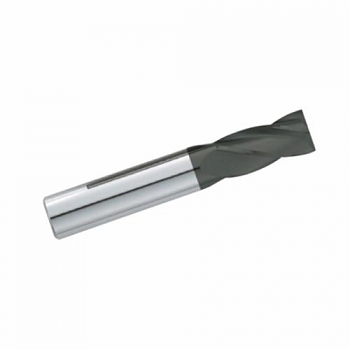

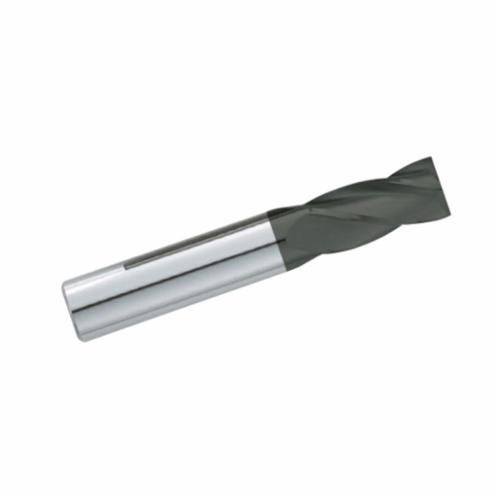

GARR 24378 210RD Center Cutting Standard Length High Performance End Mill, 12 mm Dia Cutter, 25 mm Length of Cut, 4 Flutes, 12 mm Dia Shank, 75 mm OAL, Crystalline Diamond Coated
Invoice description:
Em 12x25locx12x75mm 4fl Cvd Hp
Factory Order
GARR High Performance End Mill, Center Cutting Standard Length, Series: 210RD, 12 mm Cutter Dia, 75 mm Overall Length, 25 mm Length of Cut, 4 Flutes, Spiral Flute, 12 mm Shank Dia, Right Hand Cutting, 30 deg Helix Angle, 50 mm Shank Length, Solid Grade C-2 Carbide, Crystalline Diamond Coated
Features
- Up to 17 times tool life versus uncoated end mills
- For graphite, fiber reinforced plastics, carbon fiber and high silicon aluminum
- Radius tolerance +/-0.001 in (+/-0.025 mm)
Specifications
Cutter Diameter12 mm
Cutting DirectionRight Hand
FinishCrystalline Diamond Coated
Flute TypeSpiral
Helix Angle30 deg
Length of Cut25 mm
MaterialSolid Grade C-2 Carbide
Number of Flutes4
Overall Length75 mm
Series210RD
Shank Diameter12 mm
Shank Length50 mm
TypeCenter Cutting Standard Length
Additional Information
Country of OriginUS
Specification Sheet
