GARR GARR 23530

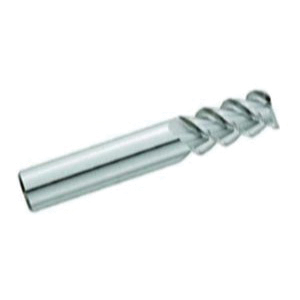

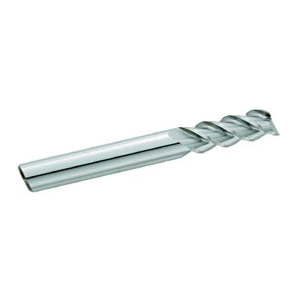

GARR 23530 Center Cutting Square End End Mill, 10 mm Dia Cutter, 22 mm Length of Cut, 3 Flutes, 10 mm Dia Shank, 70 mm OAL, Uncoated

UNSPSC: 27112803
Manufacturer PN: 23530
$43.02 EA
Factory Order
Estimated to ship in 7 days
QTY:


GARR End Mill, Center Cutting Square End, Series: 863M, 10 mm Diameter Cutter, 70 mm Overall Length, 22 mm Length of Cut, 3 Flutes, Helix Flute, 10 mm Shank Diameter, Right Hand Cutting Direction, 60 deg Helix Angle, Submicron Solid Carbide, Uncoated

  • Features

  • High performance profiling of steels, stainless steel and high temperature alloys
  • Rigid work holding, machine stability and part integrity are critical
  • Modified end gash - will not cut square corner

Specifications

ApplicationFor high performance profiling of steels, stainless steel and high temperature alloys
Cutter Diameter10 mm
Cutting DirectionRight Hand
FinishUncoated
Flute TypeHelix
Helix Angle60 deg
Length of Cut22 mm
MaterialSubmicron Solid Carbide
Number of Flutes3
Overall Length70 mm
Series863M
Shank Diameter10 mm
TypeCenter Cutting Square End

Documents
