Iscar ISCAR 6499426

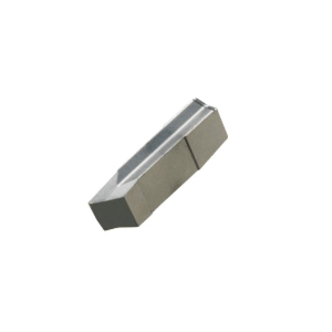

Iscar 6499426 CUT-GRIP External Precision Ground Grooving Insert, Rectangle Shape, GIPM Insert, 235 Insert, Neutral Cutting, 2.35 mm W Cutting, Manufacturers Grade: IC908, PVD-TiAlN Coated, Material Grade: H, K, M, P, S
Invoice description:
Gipm 2.35-a46r Ic908
Factory Order
Iscar Grooving Insert, External Precision Ground, Series: CUT-GRIP, GIPM Insert, 235 Insert, Rectangle Shape, 2.35 mm Cutting Width, 1 mm Maximum Depth of Cut, 0.05 mm Corner Radius, 2.35 mm Width, 15.3 mm Length, Manufacturers Grade: IC908, ISO Code: GIPM 2.35 A46R IC908, Neutral Cutting Direction, Carbide, PVD-TiAlN Coated, Material Grade: H, K, M, P, S
Features
- Precision ground back turning inserts for external machining on swiss type automatics
Specifications
ApplicationExternal Grooving and Parting
Corner Radius0.05 mm
Cutting DirectionNeutral
Cutting Width2.35 mm
FinishPVD-TiAlN Coated
Insert Size235
Insert StyleGIPM
ISO CodeGIPM 2.35 A46R IC908
Length15.3 mm
Manufacturers GradeIC908
MaterialCarbide
Material GradeH, K, M, P, S
Maximum Depth of Cut1 mm
SeriesCUT-GRIP
ShapeRectangle
TypeExternal Precision Ground
Width2.35 mm
Additional Information
Country of OriginIL
