Iscar ISCAR 6498647

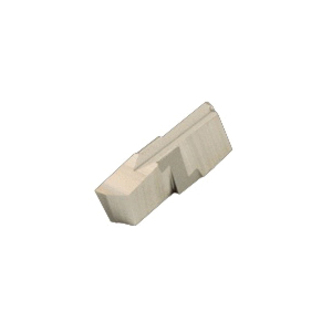

Iscar 6498647 CUT-GRIP External Precision Ground Grooving Insert, Rectangle Shape, GIPM Insert, 235A46 Insert, Neutral Cutting, 2.35 mm W Cutting, Manufacturers Grade: IC328, PVD-TiCN Coated, Material Grade: M, P, S
Invoice description:
Gipm 2.35-a46l Ic328
Factory Order

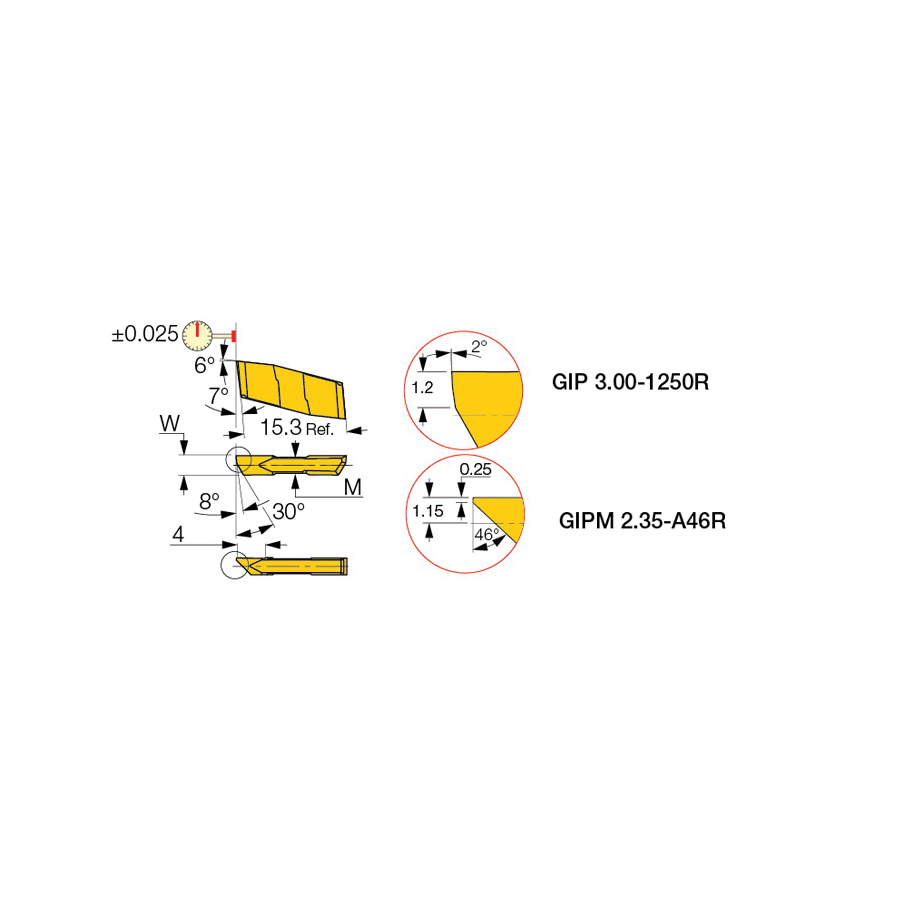

Iscar Grooving Insert, External Precision Ground, Series: CUT-GRIP, GIPM Insert, 235A46 Insert, Rectangle Shape, 2.35 mm Cutting Width, 1 mm Maximum Depth of Cut, 0.05 mm Corner Radius, Positive Rake, 2.35 mm Width, 15.3 mm Length, Manufacturers Grade: IC328, ISO Code: GIPM 2.35-A46L IC328, Neutral Cutting Direction, Carbide, PVD-TiCN Coated, Material Grade: M, P, S
Features
- Precision ground back turning inserts for external machining on swiss type automatics
Specifications
ApplicationExternal Grooving and Parting
Corner Radius0.05 mm
Cutting DirectionNeutral
Cutting Width2.35 mm
FinishPVD-TiCN Coated
Insert Size235A46
Insert StyleGIPM
ISO CodeGIPM 2.35-A46L IC328
Length15.3 mm
Manufacturers GradeIC328
MaterialCarbide
Material GradeM, P, S
Maximum Depth of Cut1 mm
RakePositive
SeriesCUT-GRIP
ShapeRectangle
TypeExternal Precision Ground
Width2.35 mm
Additional Information
Country of OriginIL
