Iscar ISCAR 6494333

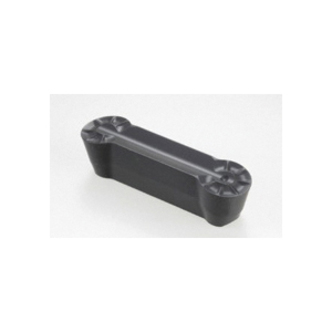

Iscar 6494333 CUT-GRIP Double End Full Radius Internal Precision Ground Utility Grooving Insert, Rectangle Shape, GDMY Insert, 840 Insert, Neutral Cutting, 8 mm W Cutting, Manufacturers Grade: IC428, CVD-TiC+Al2O3 Coated, Material Grade: H, K, P
Invoice description:
Gdmy 840 Ic428
Factory Order
Iscar Grooving Insert, Double End Full Radius Internal Precision Ground Utility, Series: CUT-GRIP, GDMY Insert, 840 Insert, Rectangle Shape, 8 mm Cutting Width, 4 mm Maximum Depth of Cut, 4 mm Corner Radius, 8 mm Width, 30 mm Length, Manufacturers Grade: IC428, ISO Code: GDMY 840 IC428, Neutral Cutting Direction, Carbide, CVD-TiC+Al2O3 Coated, Material Grade: H, K, P
Features
- Maximum machining depth is 25 mm
Specifications
ApplicationExternal Grooving, Parting, Heavy Duty Turning, Profiling and Grooving
Corner Radius4 mm
Cutting DirectionNeutral
Cutting Width8 mm
FinishCVD-TiC+Al2O3 Coated
Insert Size840
Insert StyleGDMY
ISO CodeGDMY 840 IC428
Length30 mm
Manufacturers GradeIC428
MaterialCarbide
Material GradeH, K, P
Maximum Depth of Cut4 mm
SeriesCUT-GRIP
ShapeRectangle
TypeDouble End Full Radius Internal Precision Ground Utility
Width8 mm
Additional Information
Country of OriginIL
