Iscar ISCAR 6450118

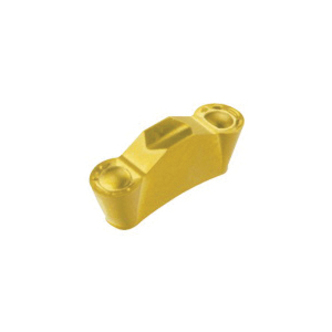

Iscar 6450118 TOP-GRIP Double End Full Radius Utility Grooving Insert, Rectangle Shape, TGMF Insert, 630 Insert, Neutral Cutting, 6 mm W Cutting, Manufacturers Grade: IC808, PVD-TiAlN/AlTiN+TiN Coated, Material Grade: H, K, M, P, S

UNSPSC: 23242107
Manufacturer PN: 6450118
$40.08 EA
Factory Order
Estimated to ship in 14 days
QTY:

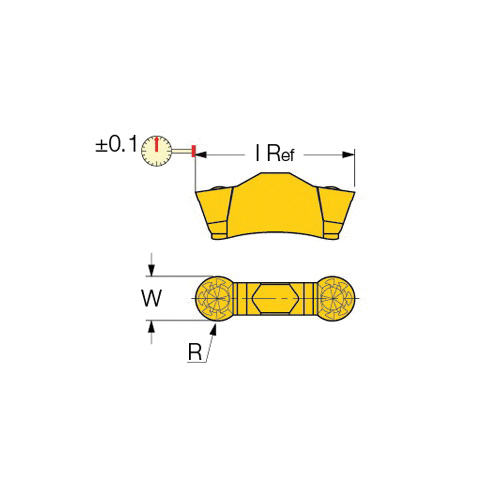

Iscar Grooving Insert, Double End Full Radius Utility, Series: TOP-GRIP, TGMF Insert, 630 Insert, Rectangle Shape, 6 mm Cutting Width, 3 mm Maximum Depth of Cut, 3 mm Corner Radius, 6 mm Width, 22.15 mm Length, Manufacturers Grade: IC808, ISO Code: TGMF 630 IC808, Neutral Cutting Direction, Carbide, PVD-TiAlN/AlTiN+TiN Coated, Material Grade: H, K, M, P, S

  • Features

  • Full radius inserts which can cut arcs to 250 deg

Specifications

ApplicationExternal/Internal Grooving and Turning
Corner Radius3 mm
Cutting DirectionNeutral
Cutting Width6 mm
FinishPVD-TiAlN/AlTiN+TiN Coated
Insert Size630
Insert StyleTGMF
ISO CodeTGMF 630 IC808
Length22.15 mm
Manufacturers GradeIC808
MaterialCarbide
Material GradeH, K, M, P, S
Maximum Depth of Cut3 mm
SeriesTOP-GRIP
ShapeRectangle
TypeDouble End Full Radius Utility
Width6 mm
