Iscar ISCAR 6450099

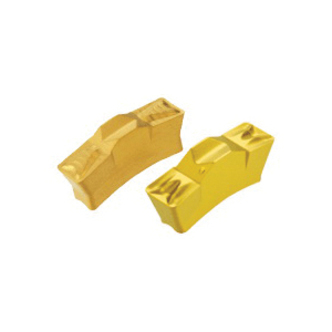

Iscar 6450099 TOP-GRIP Double End Utility Grooving Insert, Rectangle Shape, TGMF Insert, 404 Insert, Neutral Cutting, 4 mm W Cutting, Manufacturers Grade: IC8250, CVD-TiCN+Al2O3+TiN Coated, Material Grade: M, P
Invoice description:
Tgmf 404 Ic8250
Factory Order

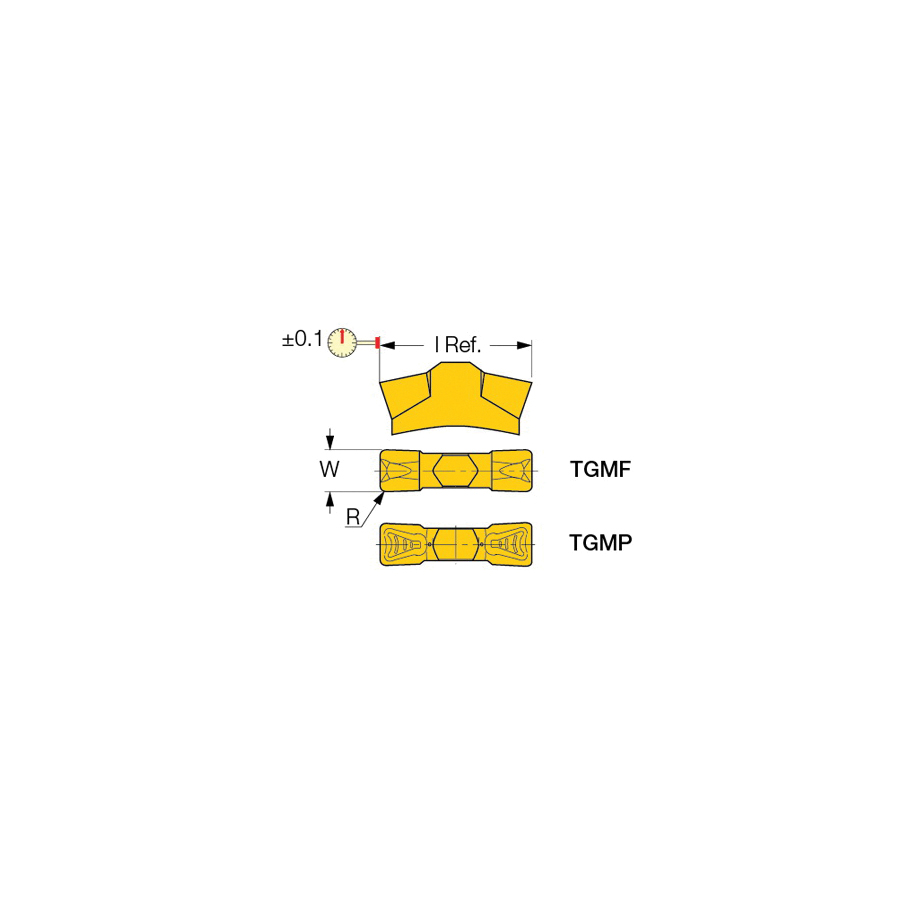

Iscar Grooving Insert, Double End Utility, Series: TOP-GRIP, TGMF Insert, 404 Insert, Rectangle Shape, 4 mm Cutting Width, 1.8 mm Maximum Depth of Cut, 0.4 mm Corner Radius, 4 mm Width, 17.7 mm Length, Manufacturers Grade: IC8250, ISO Code: TGMF 404 IC8250, Neutral Cutting Direction, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: M, P
Specifications
ApplicationExternal/Internal Grooving and Turning
Corner Radius0.4 mm
Cutting DirectionNeutral
Cutting Width4 mm
FinishCVD-TiCN+Al2O3+TiN Coated
Insert Size404
Insert StyleTGMF
ISO CodeTGMF 404 IC8250
Length17.7 mm
Manufacturers GradeIC8250
MaterialCarbide
Material GradeM, P
Maximum Depth of Cut1.8 mm
SeriesTOP-GRIP
ShapeRectangle
TypeDouble End Utility
Width4 mm
Additional Information
Country of OriginIL
