Iscar ISCAR 6450052

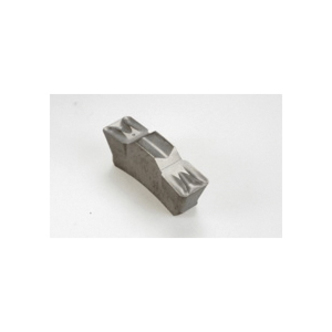

Iscar 6450052 TOP-GRIP Double End Utility Grooving Insert, Rectangle Shape, TGMF Insert, 508 Insert, Neutral Cutting, 5 mm W Cutting, Manufacturers Grade: IC428, CVD-TiC+Al2O3 Coated, Material Grade: H, K, P
Invoice description:
Tgmf 508 Ic428
Factory Order

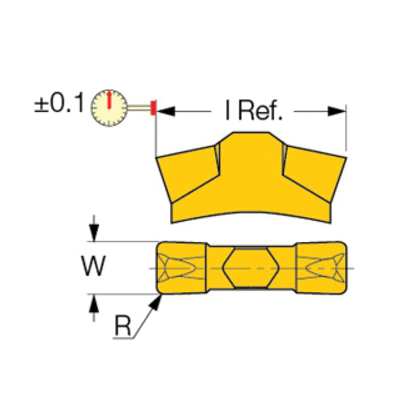

Iscar Grooving Insert, Double End Utility, Series: TOP-GRIP, TGMF Insert, 508 Insert, Rectangle Shape, 5 mm Cutting Width, 3 mm Maximum Depth of Cut, 0.8 mm Corner Radius, 5 mm Width, 17.8 mm Length, Manufacturers Grade: IC428, ISO Code: TGMF 508 IC428, Neutral Cutting Direction, Carbide, CVD-TiC+Al2O3 Coated, Material Grade: H, K, P
Specifications
ApplicationExternal/Internal Grooving and Turning
Corner Radius0.8 mm
Cutting DirectionNeutral
Cutting Width5 mm
FinishCVD-TiC+Al2O3 Coated
Insert Size508
Insert StyleTGMF
ISO CodeTGMF 508 IC428
Length17.8 mm
Manufacturers GradeIC428
MaterialCarbide
Material GradeH, K, P
Maximum Depth of Cut3 mm
SeriesTOP-GRIP
ShapeRectangle
TypeDouble End Utility
Width5 mm
Additional Information
Country of OriginIL
