Iscar ISCAR 6450051

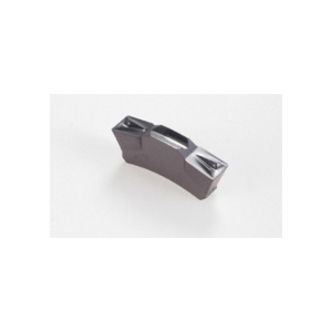

Iscar 6450051 TOP-GRIP Double End Utility Grooving Insert, Rectangle Shape, TGMF Insert, 404 Insert, Neutral Cutting, 4 mm W Cutting, Manufacturers Grade: IC428, CVD-TiC+Al2O3 Coated, Material Grade: H, K, P
Invoice description:
Tgmf 404 Ic428
Factory Order
Iscar Grooving Insert, Double End Utility, Series: TOP-GRIP, TGMF Insert, 404 Insert, Rectangle Shape, 4 mm Cutting Width, 2.4 mm Maximum Depth of Cut, 0.4 mm Corner Radius, 4 mm Width, 17.7 mm Length, Manufacturers Grade: IC428, ISO Code: TGMF 404 IC428, Neutral Cutting Direction, Carbide, CVD-TiC+Al2O3 Coated, Material Grade: H, K, P
Specifications
ApplicationExternal/Internal Grooving and Turning
Corner Radius0.4 mm
Cutting DirectionNeutral
Cutting Width4 mm
FinishCVD-TiC+Al2O3 Coated
Insert Size404
Insert StyleTGMF
ISO CodeTGMF 404 IC428
Length17.7 mm
Manufacturers GradeIC428
MaterialCarbide
Material GradeH, K, P
Maximum Depth of Cut2.4 mm
SeriesTOP-GRIP
ShapeRectangle
TypeDouble End Utility
Width4 mm
Additional Information
Country of OriginIL
