Iscar ISCAR 6410054

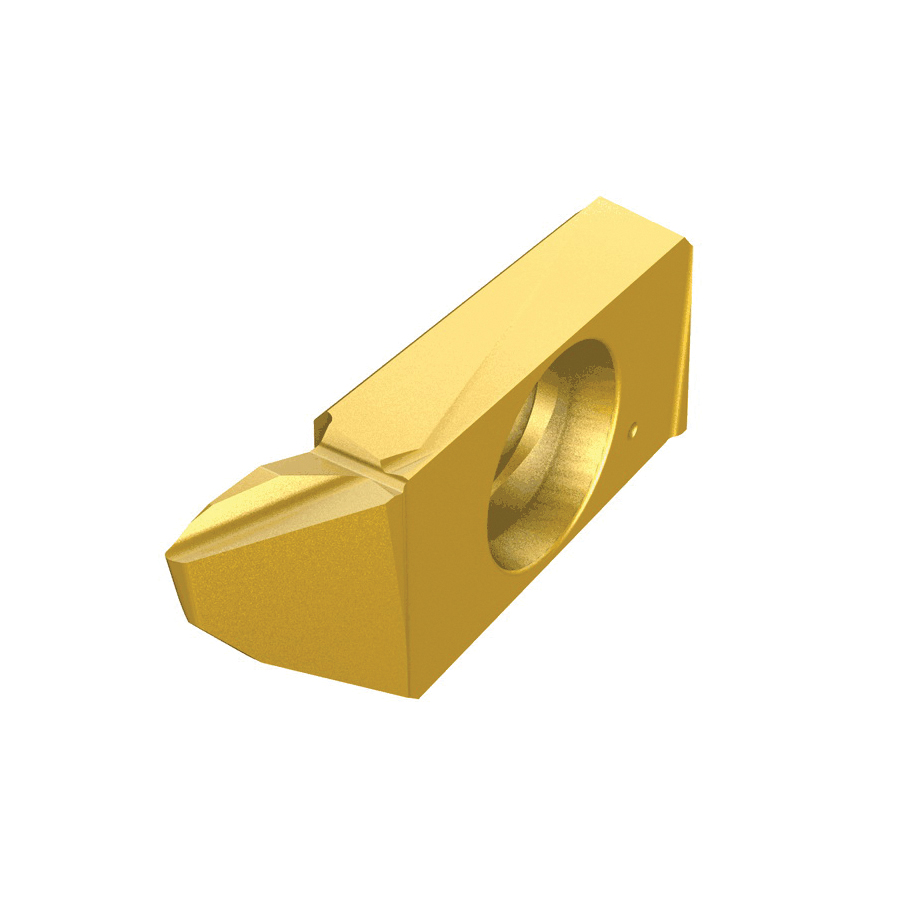

Iscar 6410054 SWISSCUT Grooving Insert, Rectangle Shape, SCIR Insert, 22BR08 Insert, Right Hand Cutting, 1 mm W Cutting, Manufacturers Grade: IC008, PVD-TiAlN+TiN Coated, Material Grade: H, K, M, N, P, S
Invoice description:
Scir 22-br08-10k15 Ic100 8
Factory Order

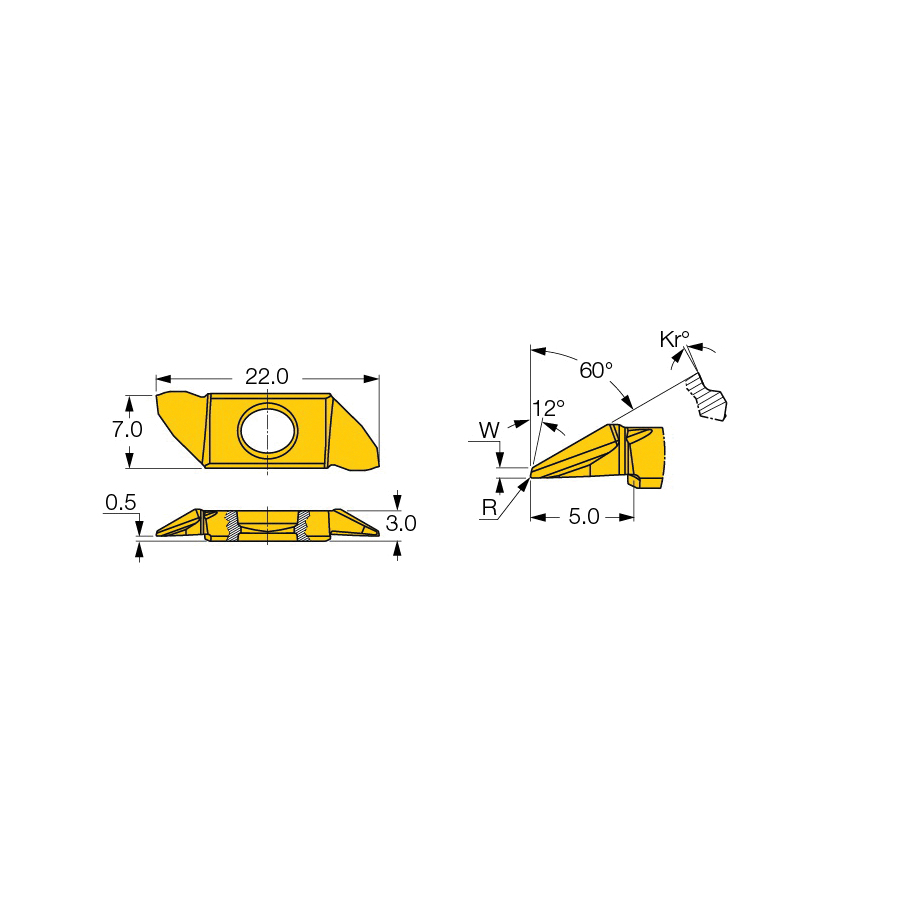

Iscar Grooving Insert, Series: SWISSCUT, SCIR Insert, 22BR08 Insert, Rectangle Shape, 1 mm Cutting Width, 3 mm Maximum Depth of Cut, K Chipbreaker, 0.08 mm Corner Radius, 1 mm Width, Manufacturers Grade: IC008, ISO Code: SCIR 22BR0810K15 IC1008, Right Hand Cutting Direction, Carbide, PVD-TiAlN+TiN Coated, Material Grade: H, K, M, N, P, S
Features
- SCIR/L-22-BR/BL back turning inserts with a frontal lead angle used on swiss type automatics and small CNC lathes
Specifications
ApplicationExternal Back Turning and ISO Turning
ChipbreakerK
Corner Radius0.08 mm
Cutting DirectionRight Hand
Cutting Width1 mm
FinishPVD-TiAlN+TiN Coated
Insert Size22BR08
Insert StyleSCIR
ISO CodeSCIR 22BR0810K15 IC1008
Manufacturers GradeIC008
MaterialCarbide
Material GradeH, K, M, N, P, S
Maximum Depth of Cut3 mm
SeriesSWISSCUT
ShapeRectangle
Width1 mm
