Iscar ISCAR 6405413

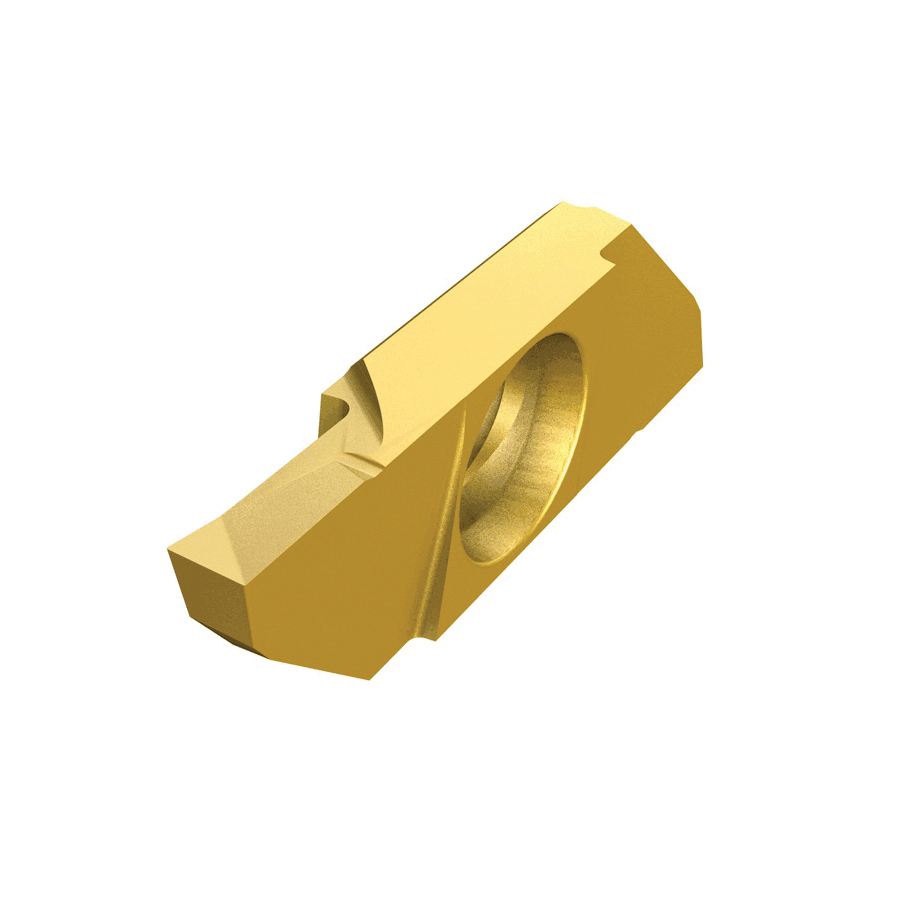

Iscar 6405413 SWISSCUT Grooving Insert, Rectangle Shape, SCIR Insert, 22250 Insert, Right Hand Cutting, 2.5 mm W Cutting, Manufacturers Grade: IC008, PVD-TiAlN+TiN Coated, Material Grade: H, K, M, N, P, S
Invoice description:
Scir 22-250np05 Ic1008
Factory Order

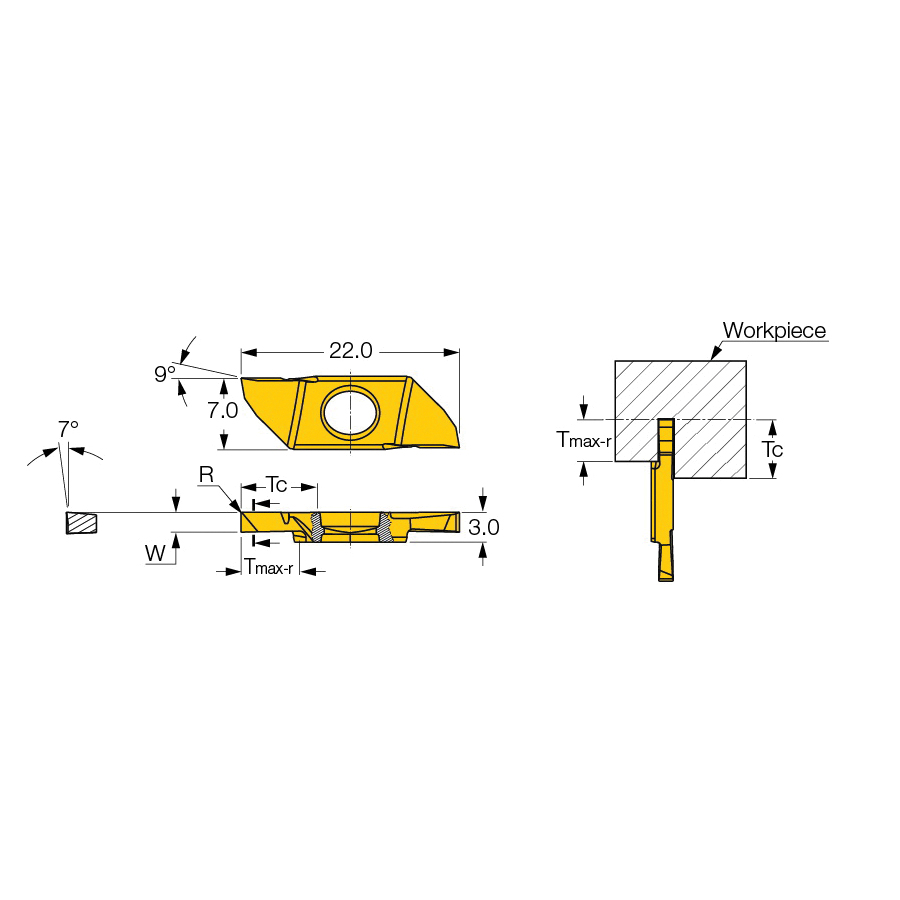

Iscar Grooving Insert, Series: SWISSCUT, SCIR Insert, 22250 Insert, Rectangle Shape, 2.5 mm Cutting Width, 3.1 mm Maximum Depth of Cut, P Chipbreaker, 0.05 mm Corner Radius, 2.5 mm Width, 22 mm Length, Manufacturers Grade: IC008, ISO Code: SCIR 22-250NP05 IC1008, Right Hand Cutting Direction, Carbide, PVD-TiAlN+TiN Coated, Material Grade: H, K, M, N, P, S
Features
- SCIR/L-22-NP inserts used on swiss type automatics and small CNC lathes
Specifications
ApplicationExternal Grooving, External Grooving and Turning, Groove Turning and Parting
ChipbreakerP
Corner Radius0.05 mm
Cutting DirectionRight Hand
Cutting Width2.5 mm
FinishPVD-TiAlN+TiN Coated
Insert Size22250
Insert StyleSCIR
ISO CodeSCIR 22-250NP05 IC1008
Length22 mm
Manufacturers GradeIC008
MaterialCarbide
Material GradeH, K, M, N, P, S
Maximum Depth of Cut3.1 mm
SeriesSWISSCUT
ShapeRectangle
Width2.5 mm
Additional Information
Country of OriginIS
