Iscar ISCAR 6405402

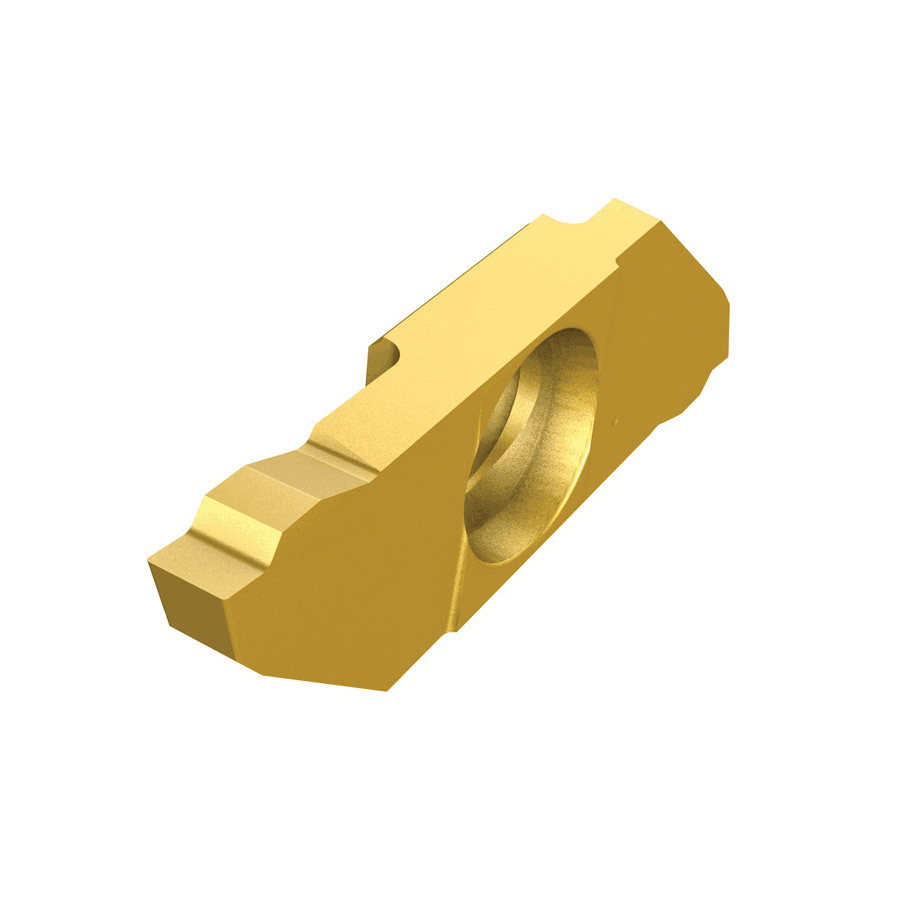

Iscar 6405402 SWISSCUT Grooving Insert, Rectangle Shape, SCIR Insert, 22200 Insert, Right Hand Cutting, 2 mm W Cutting, Manufacturers Grade: IC008, PVD-TiAlN+TiN Coated, Material Grade: H, K, M, N, P, S
Invoice description:
Scir 22-200n-10 Ic1008
Factory Order
Iscar Grooving Insert, Series: SWISSCUT, SCIR Insert, 22200 Insert, Rectangle Shape, 2 mm Cutting Width, 7 mm Maximum Depth of Cut, N Chipbreaker, 0.1 mm Corner Radius, 2 mm Width, 22 mm Length, Manufacturers Grade: IC008, ISO Code: SCIR 22200N10 IC1008, Right Hand Cutting Direction, Carbide, PVD-TiAlN+TiN Coated, Material Grade: H, K, M, N, P, S
Features
- SCIR/L-22-N/L/R grooving and parting inserts with parallel and frontal lead angle for reduced burr remaining on the workpiece
Specifications
ApplicationExternal Grooving, Groove Turning and Parting
ChipbreakerN
Corner Radius0.1 mm
Cutting DirectionRight Hand
Cutting Width2 mm
FinishPVD-TiAlN+TiN Coated
Insert Size22200
Insert StyleSCIR
ISO CodeSCIR 22200N10 IC1008
Length22 mm
Manufacturers GradeIC008
MaterialCarbide
Material GradeH, K, M, N, P, S
Maximum Depth of Cut7 mm
SeriesSWISSCUT
ShapeRectangle
Width2 mm
Additional Information
Country of OriginIS
