Iscar ISCAR 6405269

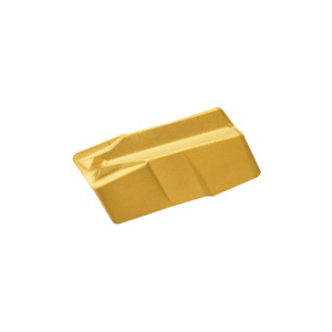

Iscar 6405269 CUT-GRIP Double End Precision Ground Grooving Insert, Rectangle Shape, GIF Insert, 600120 Insert, Neutral Cutting, 6 mm W Cutting, Manufacturers Grade: IC8250, CVD-TiCN+Al2O3+TiN Coated, Material Grade: M, P
Invoice description:
Gif 6.00e-1.20 Ic8250
Factory Order

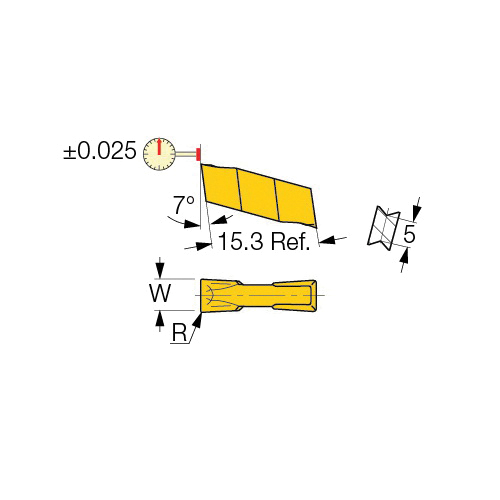

Iscar Grooving Insert, Double End Precision Ground, Series: CUT-GRIP, GIF Insert, 600120 Insert, Rectangle Shape, 6 mm Cutting Width, 3.6 mm Maximum Depth of Cut, E Chipbreaker, 1.2 mm Corner Radius, 6 mm Width, 15.3 mm Length, Manufacturers Grade: IC8250, ISO Code: GIF 6.00E-1.20 IC8250, Neutral Cutting Direction, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: M, P
Features
- Medium to high feeds
Specifications
ApplicationExternal Grooving and Parting
ChipbreakerE
Corner Radius1.2 mm
Cutting DirectionNeutral
Cutting Width6 mm
FinishCVD-TiCN+Al2O3+TiN Coated
Insert Size600120
Insert StyleGIF
ISO CodeGIF 6.00E-1.20 IC8250
Length15.3 mm
Manufacturers GradeIC8250
MaterialCarbide
Material GradeM, P
Maximum Depth of Cut3.6 mm
SeriesCUT-GRIP
ShapeRectangle
TypeDouble End Precision Ground
Width6 mm
