Iscar ISCAR 6405266

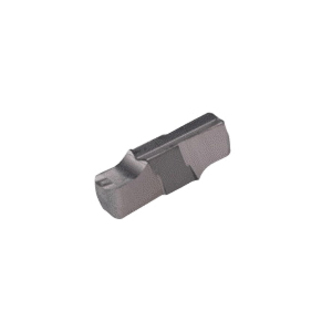

Iscar 6405266 CUT-GRIP Double End Full Radius Grooving Insert, Rectangle Shape, GIPI Insert, 478239 Insert, Neutral Cutting, 4.78 mm W Cutting, Manufacturers Grade: IC8250, CVD-TiCN+Al2O3+TiN Coated, Material Grade: M, P
Invoice description:
Gipi 4.78-2.39 Ic8250
Factory Order

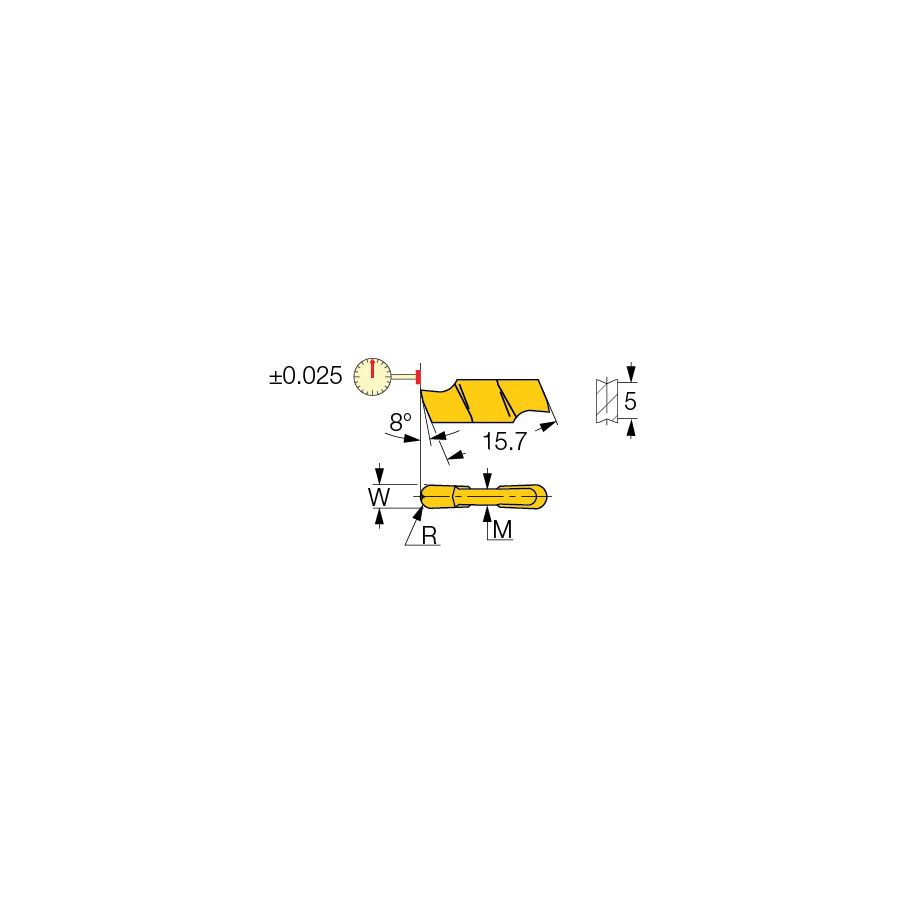

Iscar Grooving Insert, Double End Full Radius, Series: CUT-GRIP, GIPI Insert, 478239 Insert, Rectangle Shape, 4.78 mm Cutting Width, P Chipbreaker, 2.39 mm Corner Radius, 4.78 mm Width, 15.7 mm Length, Manufacturers Grade: IC8250, ISO Code: GIPI 4.78-2.39 IC8250, Neutral Cutting Direction, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: M, P
Features
- GIPI precision inserts for internal grooving and recessing
- Medium feeds
Specifications
ApplicationGroove Turning, Internal Grooving, Internal Groove Milling, Side Slotting and T-Slotting
ChipbreakerP
Corner Radius2.39 mm
Cutting DirectionNeutral
Cutting Width4.78 mm
FinishCVD-TiCN+Al2O3+TiN Coated
Insert Size478239
Insert StyleGIPI
ISO CodeGIPI 4.78-2.39 IC8250
Length15.7 mm
Manufacturers GradeIC8250
MaterialCarbide
Material GradeM, P
SeriesCUT-GRIP
ShapeRectangle
TypeDouble End Full Radius
Width4.78 mm
Additional Information
Country of OriginIS
