Iscar ISCAR 6405264

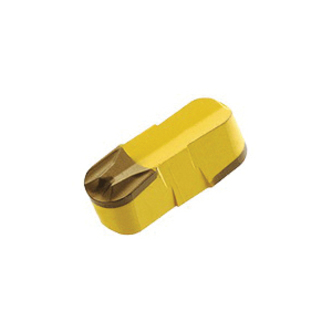

Iscar 6405264 CUT-GRIP Double End Full Radius Grooving Insert, Rectangle Shape, GIF Insert, 478239 Insert, Neutral Cutting, 4.78 mm W Cutting, Manufacturers Grade: IC8250, CVD-TiCN+Al2O3+TiN Coated, Material Grade: M, P
Invoice description:
Gif 4.78-2.39 Ic8250
Factory Order

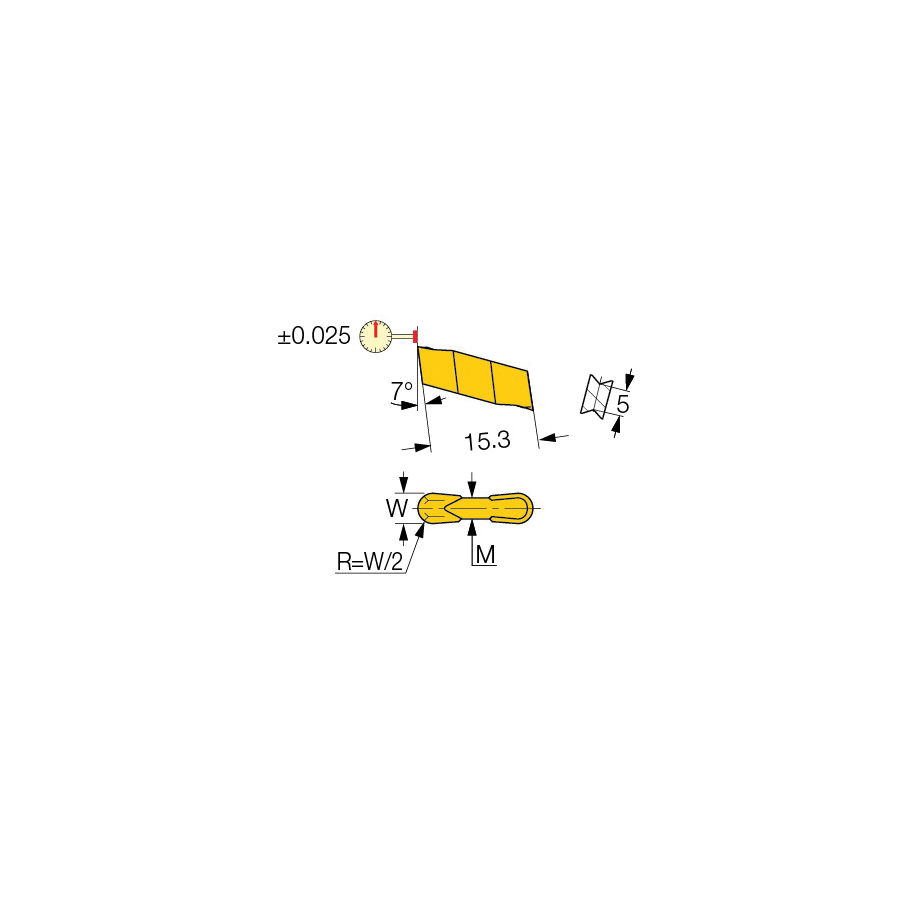

Iscar Grooving Insert, Double End Full Radius, Series: CUT-GRIP, GIF Insert, 478239 Insert, Rectangle Shape, 4.78 mm Cutting Width, 11.4 mm Maximum Depth of Cut, 2.39 mm Corner Radius, 4.78 mm Width, 15.3 mm Length, Manufacturers Grade: IC8250, ISO Code: GIF 4.78-2.39 IC8250, Neutral Cutting Direction, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: M, P
Features
- CUT-GRIP precision ground, double ended inserts for grooving at low to medium feeds
Specifications
ApplicationExternal Grooving, Internal Grooving and Tooling Systems
Corner Radius2.39 mm
Cutting DirectionNeutral
Cutting Width4.78 mm
FinishCVD-TiCN+Al2O3+TiN Coated
Insert Size478239
Insert StyleGIF
ISO CodeGIF 4.78-2.39 IC8250
Length15.3 mm
Manufacturers GradeIC8250
MaterialCarbide
Material GradeM, P
Maximum Depth of Cut11.4 mm
SeriesCUT-GRIP
ShapeRectangle
TypeDouble End Full Radius
Width4.78 mm
Additional Information
Country of OriginIS
