Iscar ISCAR 6405256

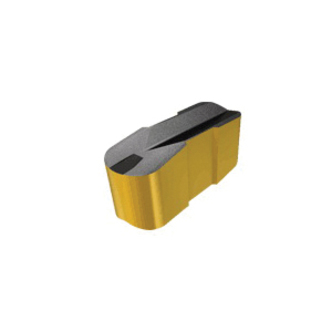

Iscar 6405256 CUT-GRIP Precision Double End Full Radius Grooving Insert, Rectangle Shape, GIP Insert, 478 Insert, Neutral Cutting, 4.78 mm W Cutting, Manufacturers Grade: IC8250, CVD-TiCN+Al2O3+TiN Coated, Material Grade: M, P
Invoice description:
Gip 4.78-2.39 Ic8250
Factory Order
Iscar Grooving Insert, Precision Double End Full Radius, Series: CUT-GRIP, GIP Insert, 478 Insert, Rectangle Shape, 4.78 mm Cutting Width, 0.449 mm Maximum Depth of Cut, P Chipbreaker, 2.39 mm Corner Radius, 4.8 mm Width, 15.3 mm Length, Manufacturers Grade: IC8250, ISO Code: GIP 4.78 2.39 IC8250, Neutral Cutting Direction, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: M, P
Specifications
ApplicationExternal Grooving and Recessing
ChipbreakerP
Corner Radius2.39 mm
Cutting DirectionNeutral
Cutting Width4.78 mm
FinishCVD-TiCN+Al2O3+TiN Coated
Insert Size478
Insert StyleGIP
ISO CodeGIP 4.78 2.39 IC8250
Length15.3 mm
Manufacturers GradeIC8250
MaterialCarbide
Material GradeM, P
Maximum Depth of Cut0.449 mm
SeriesCUT-GRIP
ShapeRectangle
TypePrecision Double End Full Radius
Width4.8 mm
Additional Information
Country of OriginIL
