Iscar ISCAR 6405255

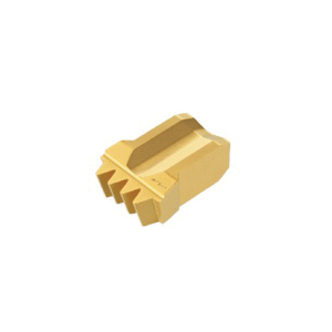

Iscar 6405255 CUT-GRIP Single End Grooving Insert, Rectangle Shape, GPV Insert, 143563 Insert, Neutral Cutting, 11.14 mm W Cutting, Manufacturers Grade: IC8250, CVD-TiCN+Al2O3+TiN Coated, Material Grade: M, P
Invoice description:
Gpv 14-3.56-3 Ic8250
Factory Order

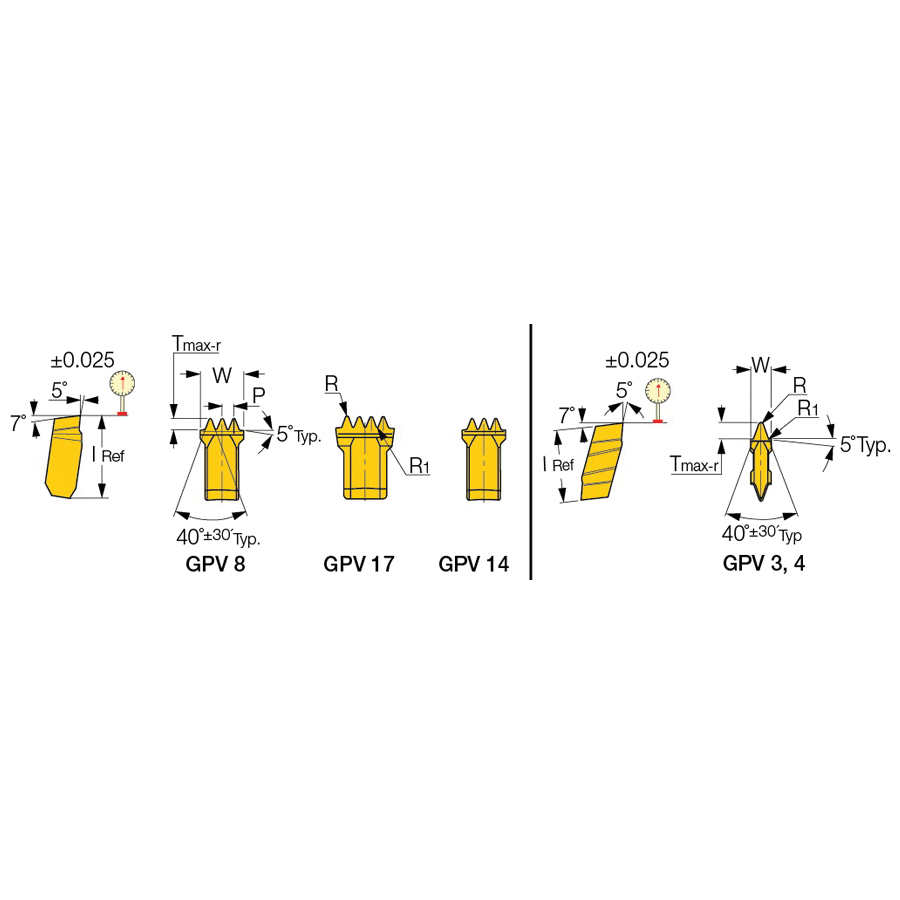

Iscar Grooving Insert, Single End, Series: CUT-GRIP, GPV Insert, 143563 Insert, Rectangle Shape, 11.14 mm Cutting Width, 3.42 mm Maximum Depth of Cut, 0.45 mm Corner Radius, 11.14 mm Width, 24 mm Length, Manufacturers Grade: IC8250, ISO Code: GPV 14-3.56-3 IC8250, Neutral Cutting Direction, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: M, P
Features
- Precision inserts for grooving multi V-ribbed pulleys
Specifications
ApplicationGroove Turning Applications
Corner Radius0.45 mm
Cutting DirectionNeutral
Cutting Width11.14 mm
FinishCVD-TiCN+Al2O3+TiN Coated
Insert Size143563
Insert StyleGPV
ISO CodeGPV 14-3.56-3 IC8250
Length24 mm
Manufacturers GradeIC8250
MaterialCarbide
Material GradeM, P
Maximum Depth of Cut3.42 mm
SeriesCUT-GRIP
ShapeRectangle
TypeSingle End
Width11.14 mm
Additional Information
Country of OriginIS
