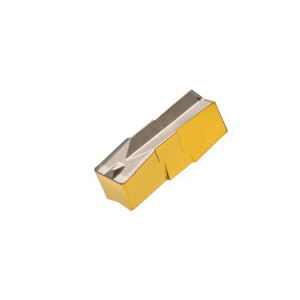

Iscar ISCAR 6405252
Iscar 6405252 CUT-GRIP Double End Precision Ground Grooving Insert, Rectangle Shape, GIP Insert, 478055 Insert, Neutral Cutting, 4.78 mm W Cutting, Manufacturers Grade: IC8250, CVD-TiCN+Al2O3+TiN Coated, Material Grade: M, P
Invoice description:
Gip 4.78e-0.55 Ic8250
Factory Order

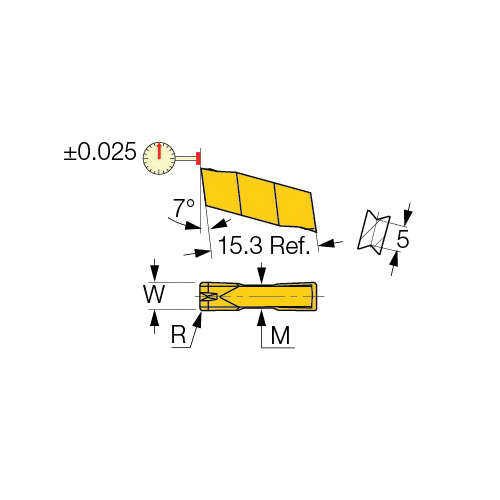

Iscar Grooving Insert, Double End Precision Ground, Series: CUT-GRIP, GIP Insert, 478055 Insert, Rectangle Shape, 4.78 mm Cutting Width, 2.8 mm Maximum Depth of Cut, E Chipbreaker, 0.55 mm Corner Radius, 4.78 mm Width, 15.3 mm Length, Manufacturers Grade: IC8250, ISO Code: GIP 4.78E-0.55 IC8250, Neutral Cutting Direction, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: M, P
Features
- Medium to high feeds
Specifications
ApplicationExternal Grooving, Parting and Turning
ChipbreakerE
Corner Radius0.55 mm
Cutting DirectionNeutral
Cutting Width4.78 mm
FinishCVD-TiCN+Al2O3+TiN Coated
Insert Size478055
Insert StyleGIP
ISO CodeGIP 4.78E-0.55 IC8250
Length15.3 mm
Manufacturers GradeIC8250
MaterialCarbide
Material GradeM, P
Maximum Depth of Cut2.8 mm
SeriesCUT-GRIP
ShapeRectangle
TypeDouble End Precision Ground
Width4.78 mm
Additional Information
Country of OriginIL
