Iscar ISCAR 6405249

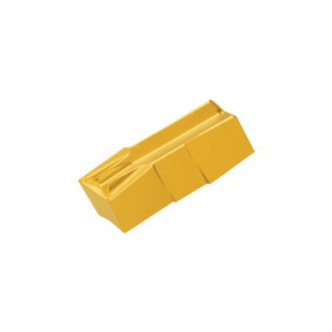

Iscar 6405249 CUT-GRIP Double End Precision Ground Grooving Insert, Rectangle Shape, GIF Insert, 539020 Insert, Neutral Cutting, 5.39 mm W Cutting, Manufacturers Grade: IC8250, CVD-TiCN+Al2O3+TiN Coated, Material Grade: M, P

Invoice description: Gif 5.39-0.20 Ic8250

UNSPSC: 23242107
Manufacturer PN: 6405249
$56.56 EA
Factory Order
Estimated to ship in 14 days
QTY:

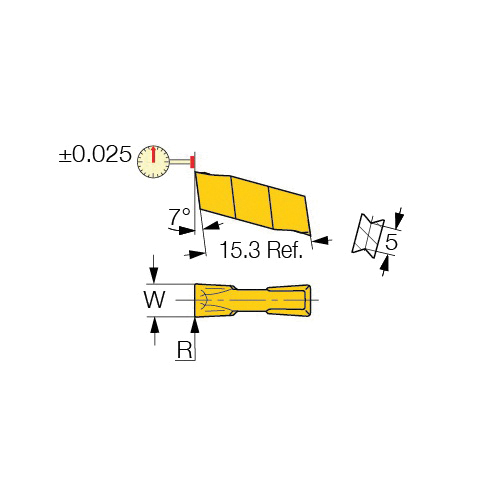

Iscar Grooving Insert, Double End Precision Ground, Series: CUT-GRIP, GIF Insert, 539020 Insert, Rectangle Shape, 5.39 mm Cutting Width, 13 mm Maximum Depth of Cut, 0.2 mm Corner Radius, 5.39 mm Width, 15.3 mm Length, Manufacturers Grade: IC8250, ISO Code: GIF 5.39-0.20 IC8250, Neutral Cutting Direction, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: M, P

  • Features

  • Used for grooving at low to medium feeds

Specifications

ApplicationExternal Grooving and Parting
Corner Radius0.2 mm
Cutting DirectionNeutral
Cutting Width5.39 mm
FinishCVD-TiCN+Al2O3+TiN Coated
Insert Size539020
Insert StyleGIF
ISO CodeGIF 5.39-0.20 IC8250
Length15.3 mm
Manufacturers GradeIC8250
MaterialCarbide
Material GradeM, P
Maximum Depth of Cut13 mm
SeriesCUT-GRIP
ShapeRectangle
TypeDouble End Precision Ground
Width5.39 mm

Additional Information

Country of OriginIL
