Iscar ISCAR 6405244

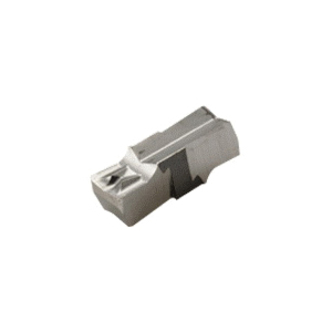

Iscar 6405244 CUT-GRIP Double End Grooving Insert, Rectangle Shape, GIFI Insert, 528020 Insert, Neutral Cutting, 5.28 mm W Cutting, Manufacturers Grade: IC8250, CVD-TiCN+Al2O3+TiN Coated, Material Grade: M, P
Invoice description:
Gifi 5.28-0.20 Ic8250
Factory Order

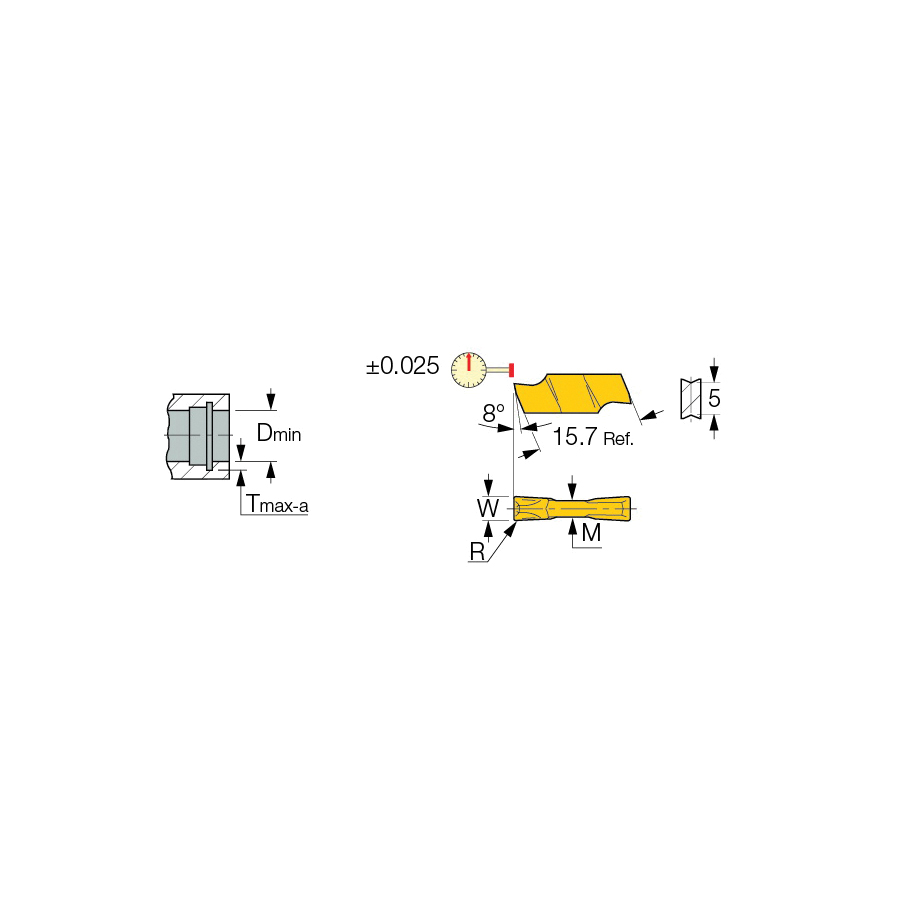

Iscar Grooving Insert, Double End, Series: CUT-GRIP, GIFI Insert, 528020 Insert, Rectangle Shape, 5.28 mm Cutting Width, 15.5 mm Maximum Depth of Cut, 0.2 mm Corner Radius, 5.28 mm Width, 15.7 mm Length, Manufacturers Grade: IC8250, ISO Code: GIFI 5.28-0.20 IC8250, Neutral Cutting Direction, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: M, P
Features
- Precision double ended inserts for internal grooving and recessing at low to medium feeds
Specifications
ApplicationGroove Turning, Internal Grooving, Internal Groove Milling, Side Slotting and T-Slotting
Corner Radius0.2 mm
Cutting DirectionNeutral
Cutting Width5.28 mm
FinishCVD-TiCN+Al2O3+TiN Coated
Insert Size528020
Insert StyleGIFI
ISO CodeGIFI 5.28-0.20 IC8250
Length15.7 mm
Manufacturers GradeIC8250
MaterialCarbide
Material GradeM, P
Maximum Depth of Cut15.5 mm
SeriesCUT-GRIP
ShapeRectangle
TypeDouble End
Width5.28 mm
Additional Information
Country of OriginIS
