Iscar ISCAR 6405238

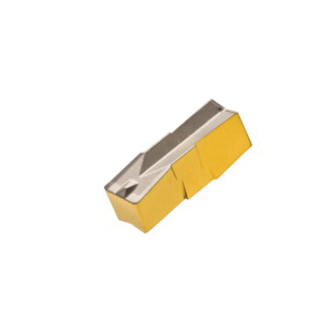

Iscar 6405238 CUT-GRIP Double End Grooving Insert, Rectangle Shape, GIP Insert, 318020 Insert, Neutral Cutting, 3.18 mm W Cutting, Manufacturers Grade: IC8250, CVD-TiCN+Al2O3+TiN Coated, Material Grade: M, P
Invoice description:
Gip 3.18-0.20 Ic8250
Factory Order

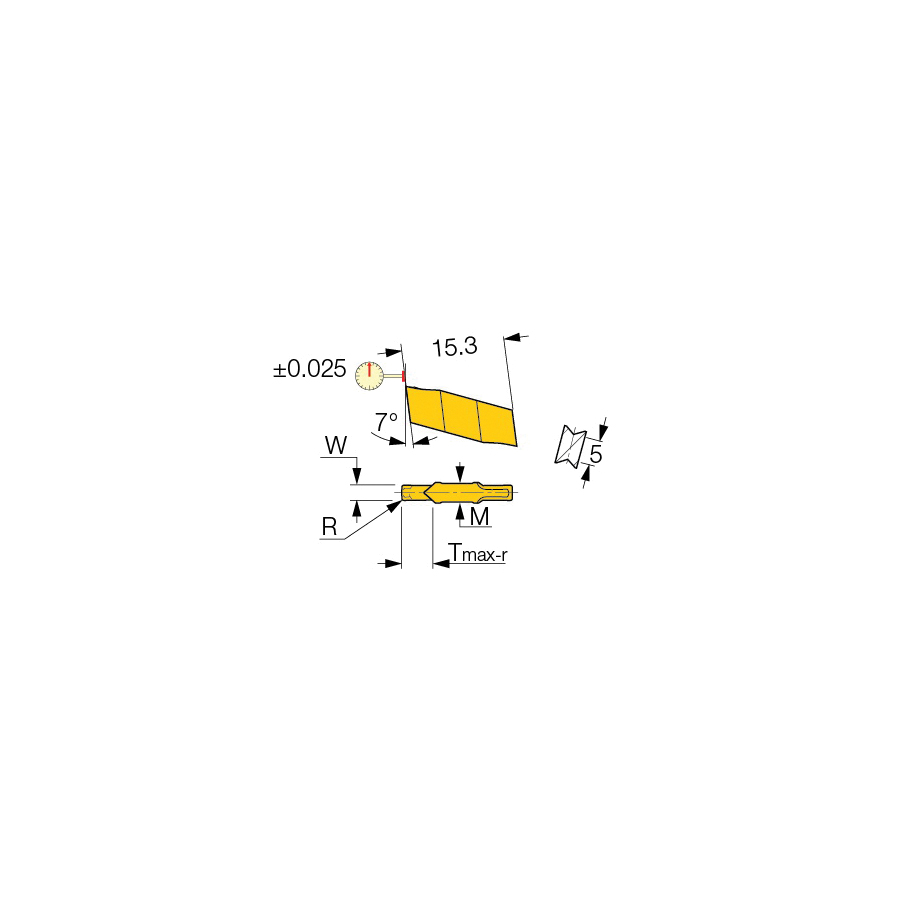

Iscar Grooving Insert, Double End, Series: CUT-GRIP, GIP Insert, 318020 Insert, Rectangle Shape, 3.18 mm Cutting Width, 1 mm Maximum Depth of Cut, P Chipbreaker, 0.2 mm Corner Radius, 3 mm Width, 15.3 mm Length, Manufacturers Grade: IC8250, ISO Code: GIP 318020 IC8250, Neutral Cutting Direction, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: M, P
Features
- Precision ground inserts for grooving and recessing
Specifications
ApplicationExternal Grooving, Groove Turning, Internal Grooving, Side-Slotting, Slitting and T-Slotting
ChipbreakerP
Corner Radius0.2 mm
Cutting DirectionNeutral
Cutting Width3.18 mm
FinishCVD-TiCN+Al2O3+TiN Coated
Insert Size318020
Insert StyleGIP
ISO CodeGIP 318020 IC8250
Length15.3 mm
Manufacturers GradeIC8250
MaterialCarbide
Material GradeM, P
Maximum Depth of Cut1 mm
SeriesCUT-GRIP
ShapeRectangle
TypeDouble End
Width3 mm
Additional Information
Country of OriginIS
