Iscar ISCAR 6405233

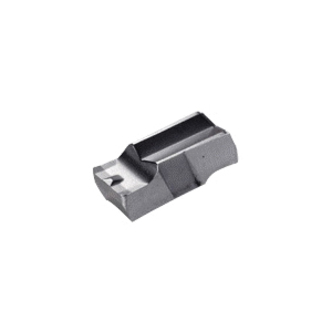

Iscar 6405233 CUT-GRIP Double End Precision Ground Grooving Insert, Rectangle Shape, GIPI Insert, 635055 Insert, Neutral Cutting, 6.35 mm W Cutting, Manufacturers Grade: IC8250, CVD-TiCN+Al2O3+TiN Coated, Material Grade: M, P
Invoice description:
Gipi 6.35e-0.55 Ic8250
Factory Order
Iscar Grooving Insert, Double End Precision Ground, Series: CUT-GRIP, GIPI Insert, 635055 Insert, Rectangle Shape, 6.35 mm Cutting Width, 3.1 mm Maximum Depth of Cut, E Chipbreaker, 0.55 mm Corner Radius, 6.35 mm Width, 15.7 mm Length, Manufacturers Grade: IC8250, ISO Code: GIPI 6.35E-0.55 IC8250, Neutral Cutting Direction, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: M, P
Features
- Precision insert with double edge for internal machining
Specifications
ApplicationExternal/Internal Grooving, Turning and Parting
ChipbreakerE
Corner Radius0.55 mm
Cutting DirectionNeutral
Cutting Width6.35 mm
FinishCVD-TiCN+Al2O3+TiN Coated
Insert Size635055
Insert StyleGIPI
ISO CodeGIPI 6.35E-0.55 IC8250
Length15.7 mm
Manufacturers GradeIC8250
MaterialCarbide
Material GradeM, P
Maximum Depth of Cut3.1 mm
SeriesCUT-GRIP
ShapeRectangle
TypeDouble End Precision Ground
Width6.35 mm
Additional Information
Country of OriginIL
