Iscar ISCAR 6405229

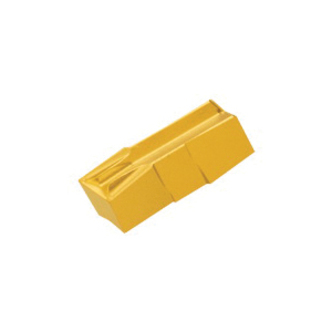

Iscar 6405229 CUT-GRIP Double End Grooving Insert, Rectangle Shape, GIF Insert, 398020 Insert, Neutral Cutting, 3.98 mm W Cutting, Manufacturers Grade: IC8250, CVD-TiCN+Al2O3+TiN Coated, Material Grade: M, P
Invoice description:
Gif 3.98-0.20 Ic8250
Factory Order

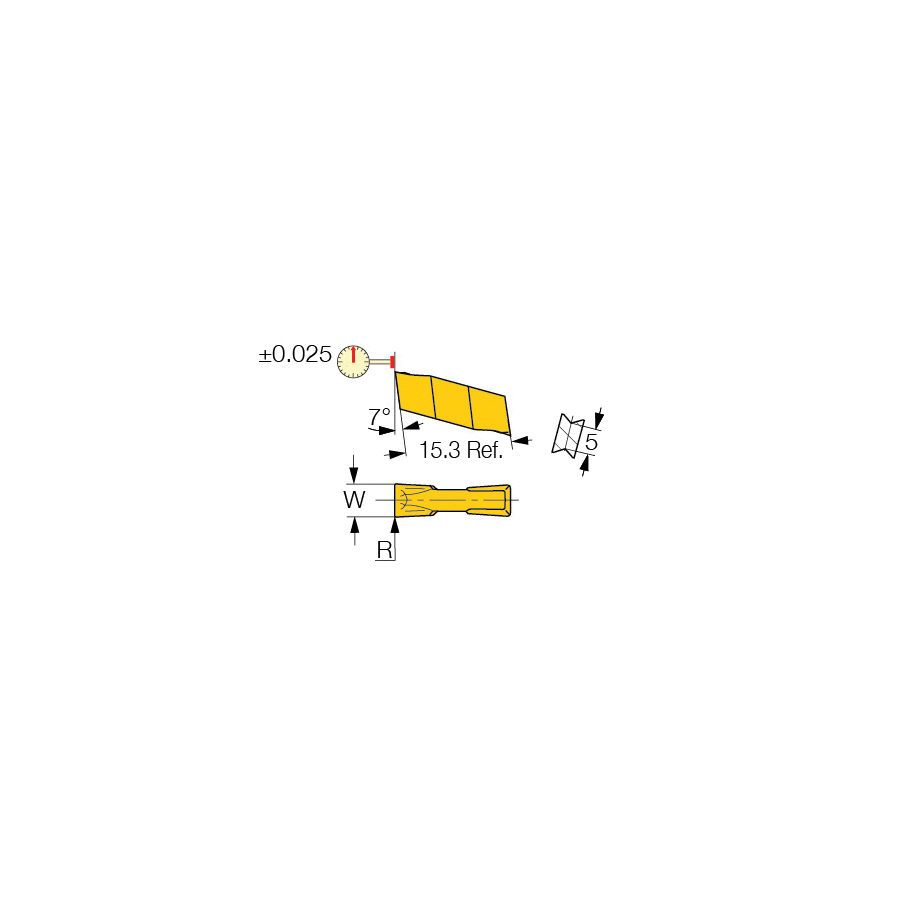

Iscar Grooving Insert, Double End, Series: CUT-GRIP, GIF Insert, 398020 Insert, Rectangle Shape, 3.98 mm Cutting Width, 13 mm Maximum Depth of Cut, 0.2 mm Corner Radius, 3.98 mm Width, 15.3 mm Length, Manufacturers Grade: IC8250, ISO Code: GIF 3.98-0.20 IC8250, Neutral Cutting Direction, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: M, P
Features
- CUT-GRIP precision ground, double ended inserts for grooving at low to medium feeds
Specifications
ApplicationExternal Grooving, Groove Turning and Internal Grooving
Corner Radius0.2 mm
Cutting DirectionNeutral
Cutting Width3.98 mm
FinishCVD-TiCN+Al2O3+TiN Coated
Insert Size398020
Insert StyleGIF
ISO CodeGIF 3.98-0.20 IC8250
Length15.3 mm
Manufacturers GradeIC8250
MaterialCarbide
Material GradeM, P
Maximum Depth of Cut13 mm
SeriesCUT-GRIP
ShapeRectangle
TypeDouble End
Width3.98 mm
Additional Information
Country of OriginIS
