Iscar ISCAR 6405225

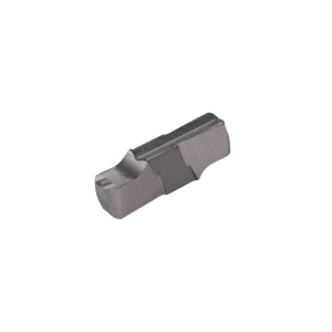

Iscar 6405225 CUT-GRIP Double End Full Radius Internal Precision Ground Utility Grooving Insert, Rectangle Shape, GIPI Insert, 318159 Insert, Neutral Cutting, 3.18 mm W Cutting, Manufacturers Grade: IC8250, CVD-TiCN+Al2O3+TiN Coated, Material Grade: M, P
Invoice description:
Gipi 3.18-1.59 Ic8250
Factory Order

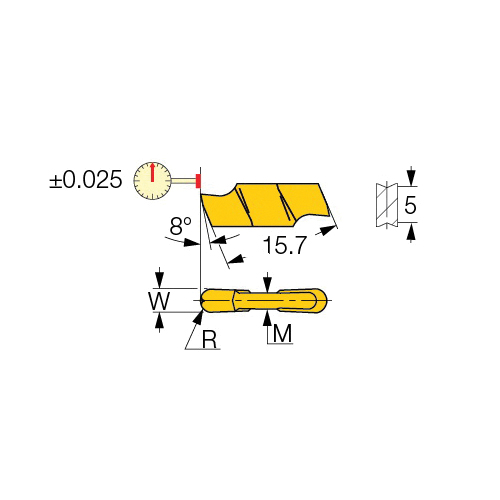

Iscar Grooving Insert, Double End Full Radius Internal Precision Ground Utility, Series: CUT-GRIP, GIPI Insert, 318159 Insert, Rectangle Shape, 3.18 mm Cutting Width, P Chipbreaker, 1.59 mm Corner Radius, 3.18 mm Width, 15.7 mm Length, Manufacturers Grade: IC8250, ISO Code: GIPI 3.18-1.59 IC8250, Neutral Cutting Direction, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: M, P
Features
- Medium feeds
Specifications
ApplicationExternal/Internal Grooving, Recessing and Parting
ChipbreakerP
Corner Radius1.59 mm
Cutting DirectionNeutral
Cutting Width3.18 mm
FinishCVD-TiCN+Al2O3+TiN Coated
Insert Size318159
Insert StyleGIPI
ISO CodeGIPI 3.18-1.59 IC8250
Length15.7 mm
Manufacturers GradeIC8250
MaterialCarbide
Material GradeM, P
SeriesCUT-GRIP
ShapeRectangle
TypeDouble End Full Radius Internal Precision Ground Utility
Width3.18 mm
Additional Information
Country of OriginIL
