Iscar ISCAR 6405219

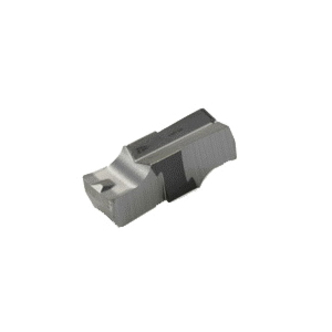

Iscar 6405219 CUT-GRIP Double End Grooving Insert, Rectangle Shape, GIPI Insert, 423010 Insert, Neutral Cutting, 4.23 mm W Cutting, Manufacturers Grade: IC8250, CVD-TiCN+Al2O3+TiN Coated, Material Grade: M, P
Invoice description:
Gipi 4.23-0.10 Ic8250
Factory Order

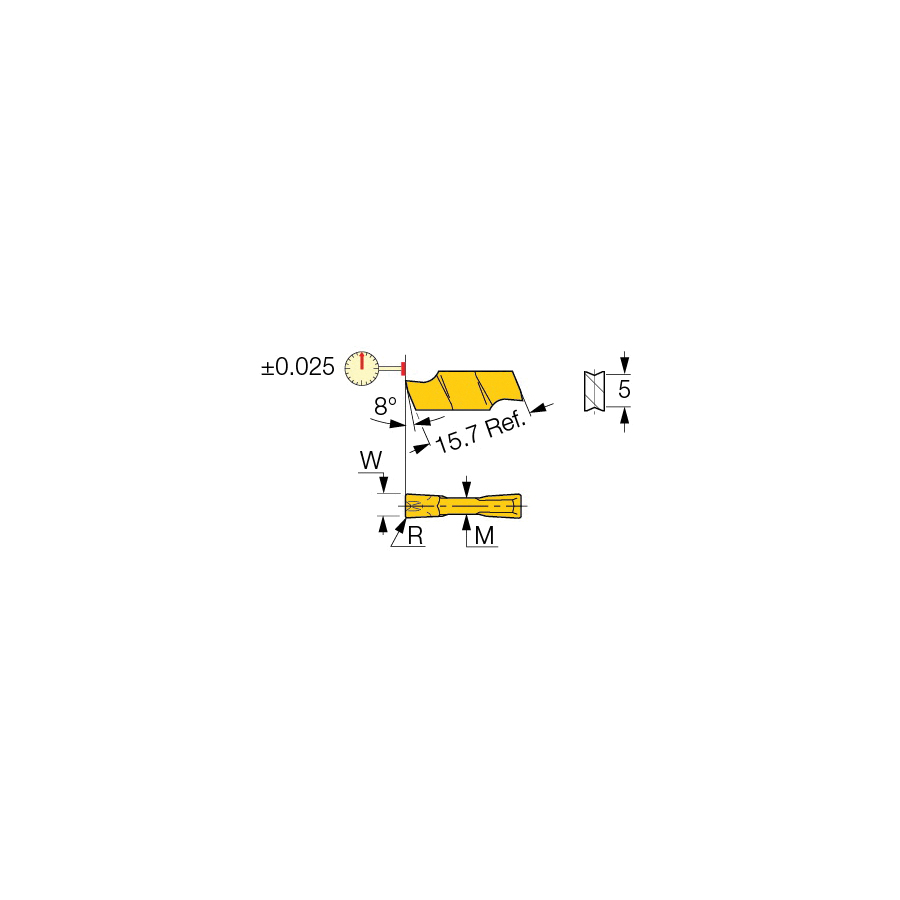

Iscar Grooving Insert, Double End, Series: CUT-GRIP, GIPI Insert, 423010 Insert, Rectangle Shape, 4.23 mm Cutting Width, P Chipbreaker, 0.1 mm Corner Radius, 4.23 mm Width, 15.7 mm Length, Manufacturers Grade: IC8250, ISO Code: GIPI 4.23-0.10 IC8250, Neutral Cutting Direction, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: M, P
Features
- Double ended precision inserts with P type chip former for internal grooving and recessing at medium feeds
Specifications
ApplicationInternal Grooving, Internal Groove Milling, Milling, Side Slotting and T-Slotting
ChipbreakerP
Corner Radius0.1 mm
Cutting DirectionNeutral
Cutting Width4.23 mm
FinishCVD-TiCN+Al2O3+TiN Coated
Insert Size423010
Insert StyleGIPI
ISO CodeGIPI 4.23-0.10 IC8250
Length15.7 mm
Manufacturers GradeIC8250
MaterialCarbide
Material GradeM, P
SeriesCUT-GRIP
ShapeRectangle
TypeDouble End
Width4.23 mm
Additional Information
Country of OriginIS
